Adastra CC5V 5.25" 20W Ceiling Speaker With Control (Each)

£3099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

The Adastra CC5V is a compact 5.25" 2-way ceiling speaker designed for 100V line or 8 Ohm systems, making it ideal for commercial, retail, and office installations. With a polypropylene mica bass driver and directional dome tweeter, it delivers a balanced frequency response suitable for music and announcements. The built-in rotary selector switch allows easy selection of multiple 100V line tappings or 8 Ohm operation. Featuring "dog-ear" mounts for quick installation into ceilings 1–20mm thick, the speaker ensures secure fitting. Spring-loaded terminals provide fast, reliable wiring.

Key features:

  • 5.25" polypropylene mica woofer with dome tweeter
  • Rotary selector for 100V tappings or 8 Ohms
  • 20W RMS (100V) / 40W RMS (8 Ohms), 80W max
  • Wide 160° sound dispersion
  • Dog-ear mounts for easy ceiling install
  • Spring-loaded terminals for fast connection
Specification
Dispersion angle 160°
Frequency response 85Hz - 20kHz
Woofer 133mmØ (5.25")
Tweeter 38mmØ (1.5")
Power rms : 100V line 20W
Power rms : 8 Ohms 40W
Cutout 166mmØ
Mounting depth 84mm
SPL @ 1W/1m 84dB (±2dB)
Tappings 2.5, 5, 10, 15, 20W & 8 Ohms
Dimensions 88 x 202mmØ
Weight 1.15kg
Power max. : 8 Ohms 80W
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

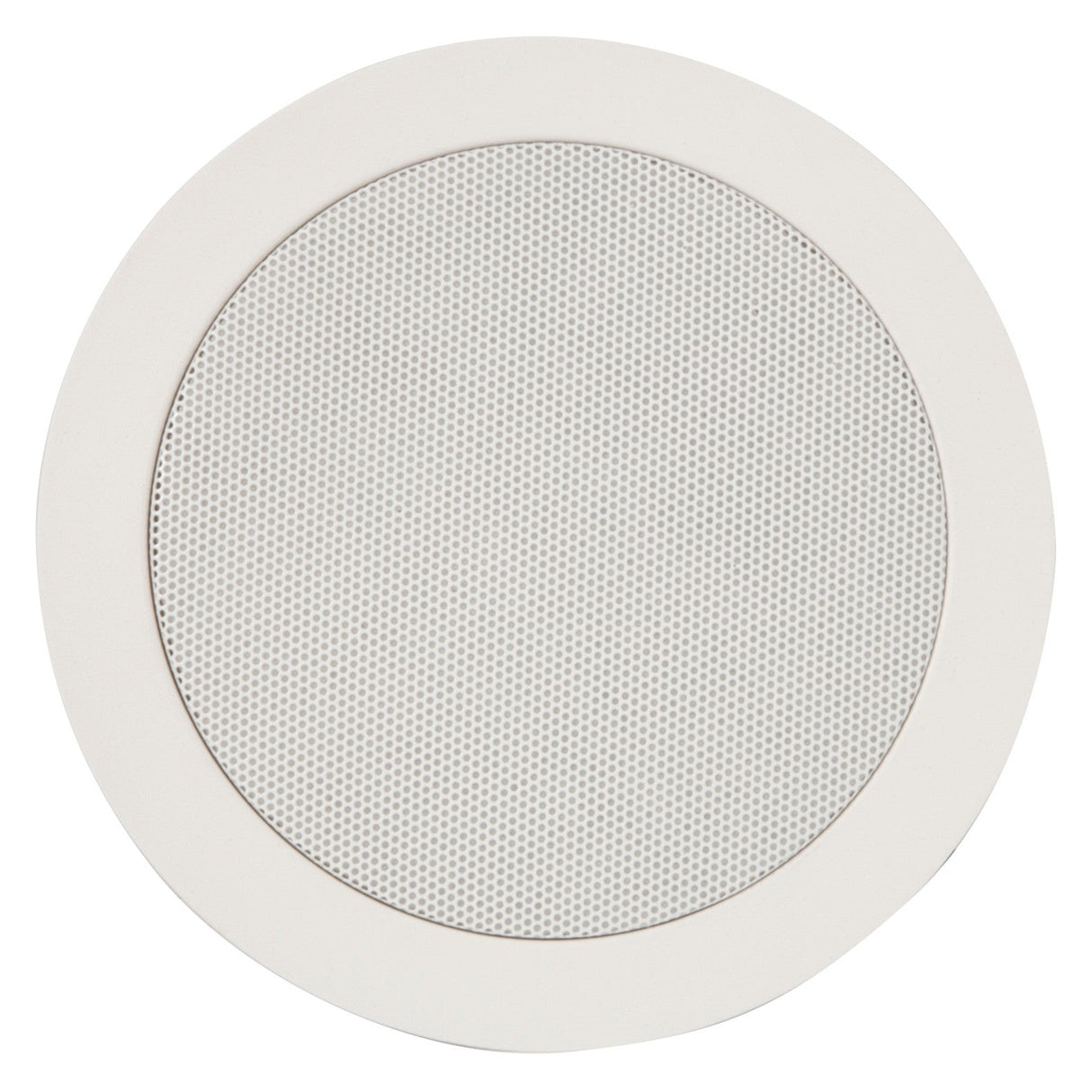

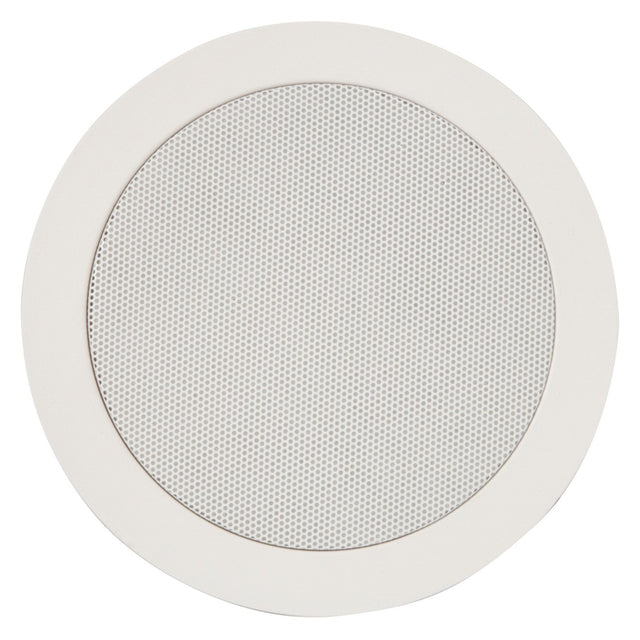

    The Adastra CC5V 5.25" 20W Ceiling Speaker with Control features a round design with a perforated metal grille cover and a white polymer frame, perfect for discreet audio installation in ceilings. Its minimalist style and smooth outer rim offer a sleek appearance, while the directional dome tweeter improves sound precision.
