Adastra Call Station for RM244V Mixer Amplifier

£12399
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Paging microphone with call station base for use with the RM244V or RM4460 mixer-amps. Connected via RJ45 for both signal and power to simplify wiring. Zone assign buttons enable calling to one or all zones. Pressing the page button mutes all audio playback and plays one of 8 selectable chimes, opening the microphone to the selected zone(s). Pressing the reset button mutes the microphone and resumes background music playback to all zones. This system offers 4-zone paging without the additional cost of using a quad amplifier.

  • 8 selectable chime settings
  • Assignable to individual or all 4 zones
  • Up to 1km remote wiring over CAT5
  • 3.5mm aux input
  • Supplied with 1m RJ45 patch lead
  • For use with the RM244V amplifier (953.244UK)
Specification
Dimensions 460 x 140 x 115mm
Weight 670g
Max. connection length 100m (CAT5 cable) or 1km with optional 24Vdc adaptor
Connectors RJ45 to amplifier, 24Vdc power jack, 3.5mm aux in
Power supply 24Vdc, 500mA from RJ45 or optional adaptor
Output impedance : balanced 600 Ohms
Output level 10dBV
Input level Mic: -46dBV, Aux: -10dBV
Input impedance Mic: 600 Ohms, Aux: 50k Ohms
S/N ratio -60dB (all channels selected)
Interface RS-485 control
Zone assign 4 zones or all selectable
Frequency response : -3dB 150Hz - 22kHz
Capsule Back electret condenser
Polar pattern Cardioid
Controls Aux/Mic/Chime levels, chime DIP switches, zone/page buttons
Downloads

Product Manual

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

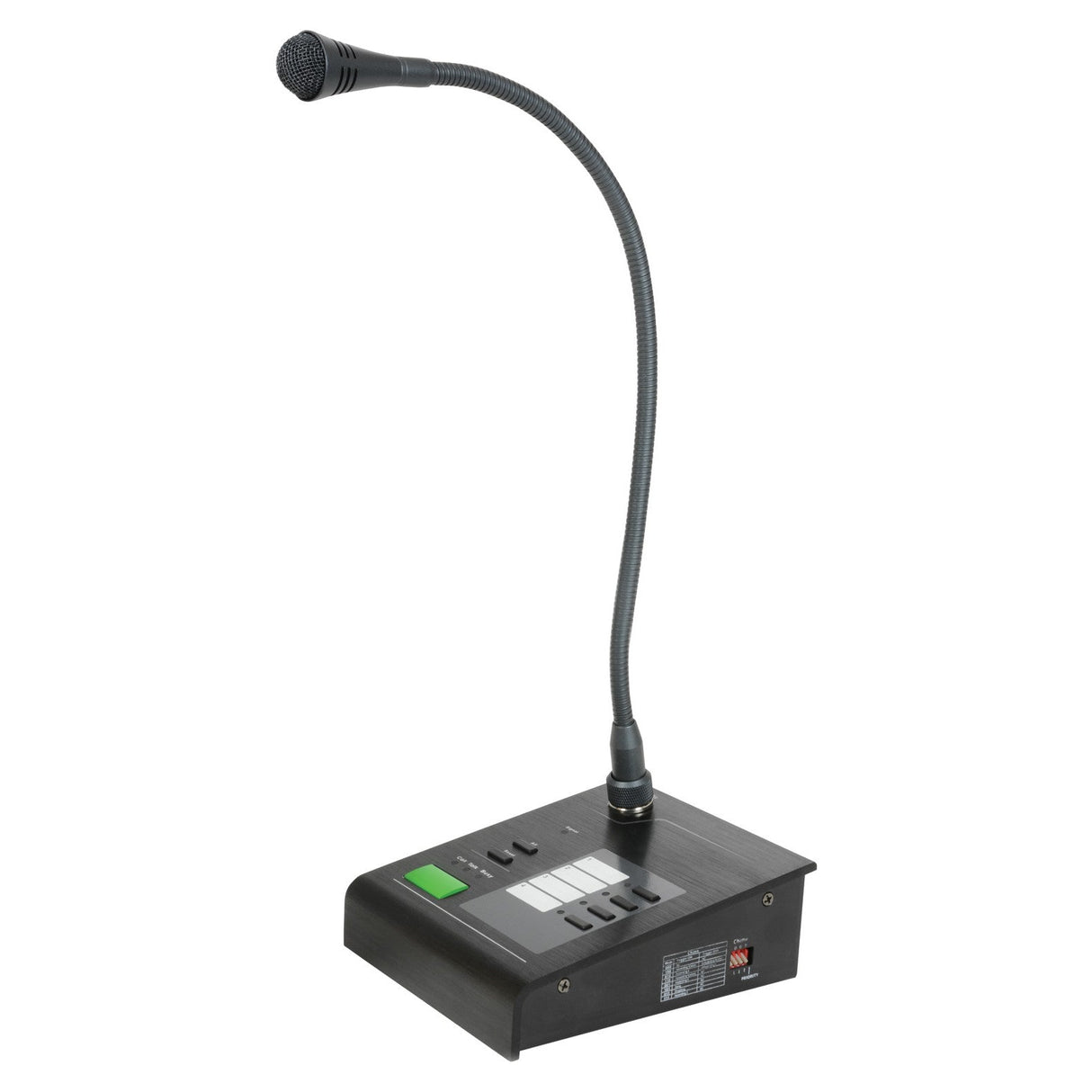

    The Adastra Call Station for RM244V Mixer Amplifier is a black gooseneck paging microphone mounted on a desktop base, featuring zone assign buttons and a green display screen. Its sleek, angled design incorporates multiple control buttons and labels for easy operation, ensuring seamless communication.
