5A IP65 Photocell Switch

£799
The RRP is the manufacturer's recommended retail price of the item.
Limited stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

Direct wire-in thermal photodiode dusk to dawn sensor. Suitable for mounting in appropriate light fittings and suitable enclosures. Ideal for controlling lighting automatically based on the ambient lighting level.

  • 230V AC 50Hz
  • IP65 rated (once installed)
  • Max. load: 500W Incandescent / 850VA Inductive / 300W LED
  • Operating range: On 10-20lux / Off 30-60lux
  • Time delay: 20-120 seconds
  • Ambient temperature: -40°C to 70°C
  • Relative humidity: 99% RH
  • Pre-wired with 300mm cable
  • Sensor projection: 21mm
  • Cut out required: 17mm
  • Seals and locknuts included
Specification
Length 52.5 mm
Width 29 mm
Projection 21 mm
Cut-out Diameter 17 mm
Min. Mounting Box Depth 25mm
Construction Polycarbonate
Finish Black
Class II
IP Rating IP65
Primary Voltage 230V 50Hz
Cable Length 0.3 m
Warranty 2
Downloads

Product Specification Sheet

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

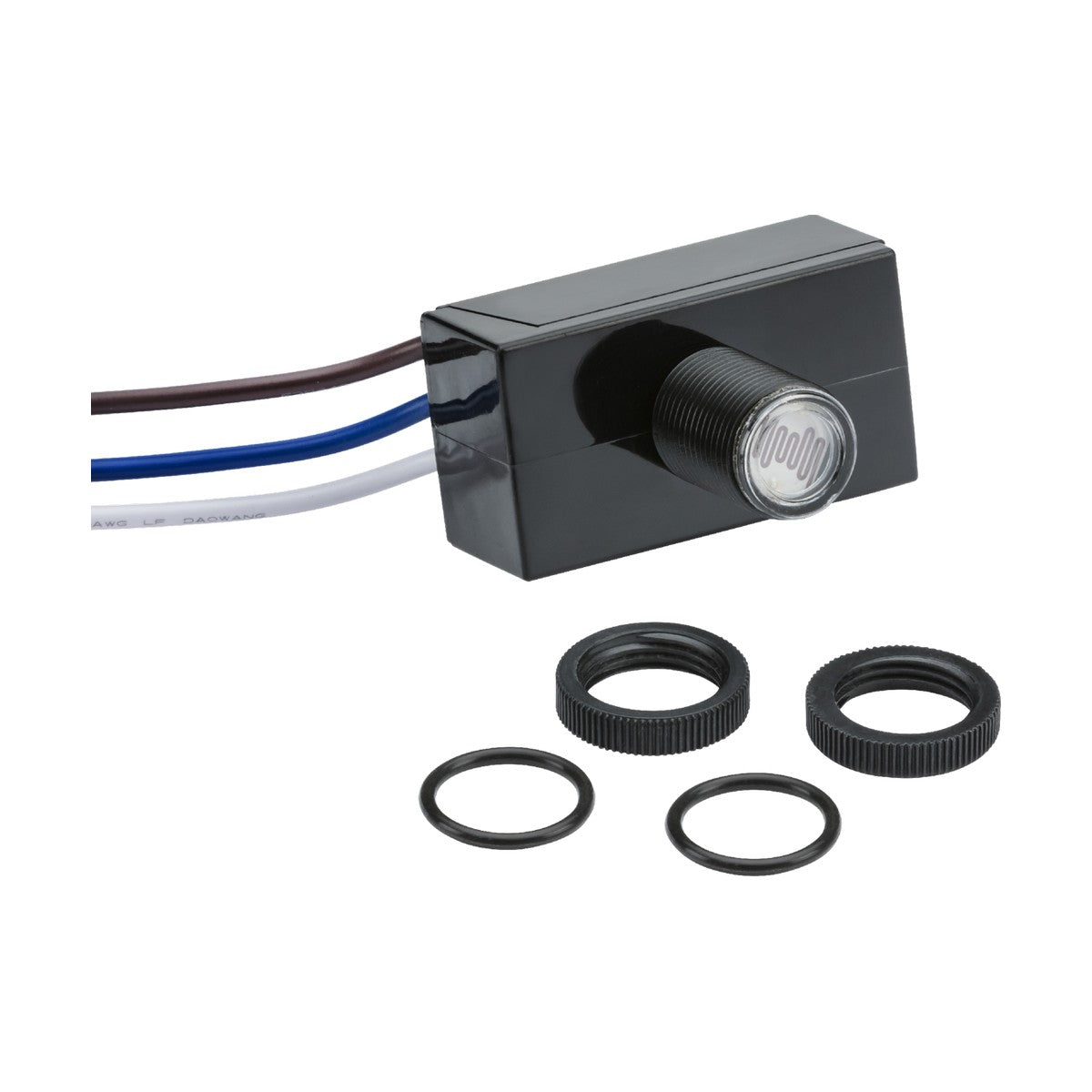

    A 5A IP65 Photocell Switch features a black rectangular thermal photodiode sensor with a cylindrical protrusion on one side. It includes three extending wires—brown, blue, and white—and comes with three circular rubber rings and two threaded caps for robust protection, ensuring an IP65 rating.
