120° PIR Sensor Module 50x50mm - Black

£1899
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
30 Day Returns
Flexible payment options

Upgrade your lighting control with this passive infrared (PIR) sensor module, designed for compatibility with euro modular frames accepting a 50×50mm module. Finished in a modern black tone, it seamlessly integrates into contemporary interiors, adding a refined touch to hallways, restrooms, or communal areas. The sensor operates on passive infrared technology, detecting movement across a 120° field of view and a range of up to five meters - ideal for automating lighting in both residential and commercial spaces.

By relying on live and neutral wiring, it ensures reliable performance and eliminates the need for manual switching in frequently accessed areas. The device is pre-set for a three-minute time operation and is also lux-sensitive, turning on lights when ambient brightness falls below a certain level. Engineered to handle a maximum load of 100W LED or 200W incandescent lighting, it efficiently conserves energy while promoting user convenience. Installation requires a 47mm back box, ensuring a discreet and streamlined appearance. Count on this PIR sensor module to bring hands-free illumination to busy environments, maintaining safety and comfort without disrupting your design aesthetic.

Modular Faceplate (not included)

Height 50 mm
Width 50 mm
Recessed Depth 40 mm
Min. Mounting Box Depth 47mm
Construction Polycarbonate
Finish Black
Class II
IP Rating IP20
Primary Voltage 230V 50Hz
Warranty 2
Have a question?
We're here to help
Call Us

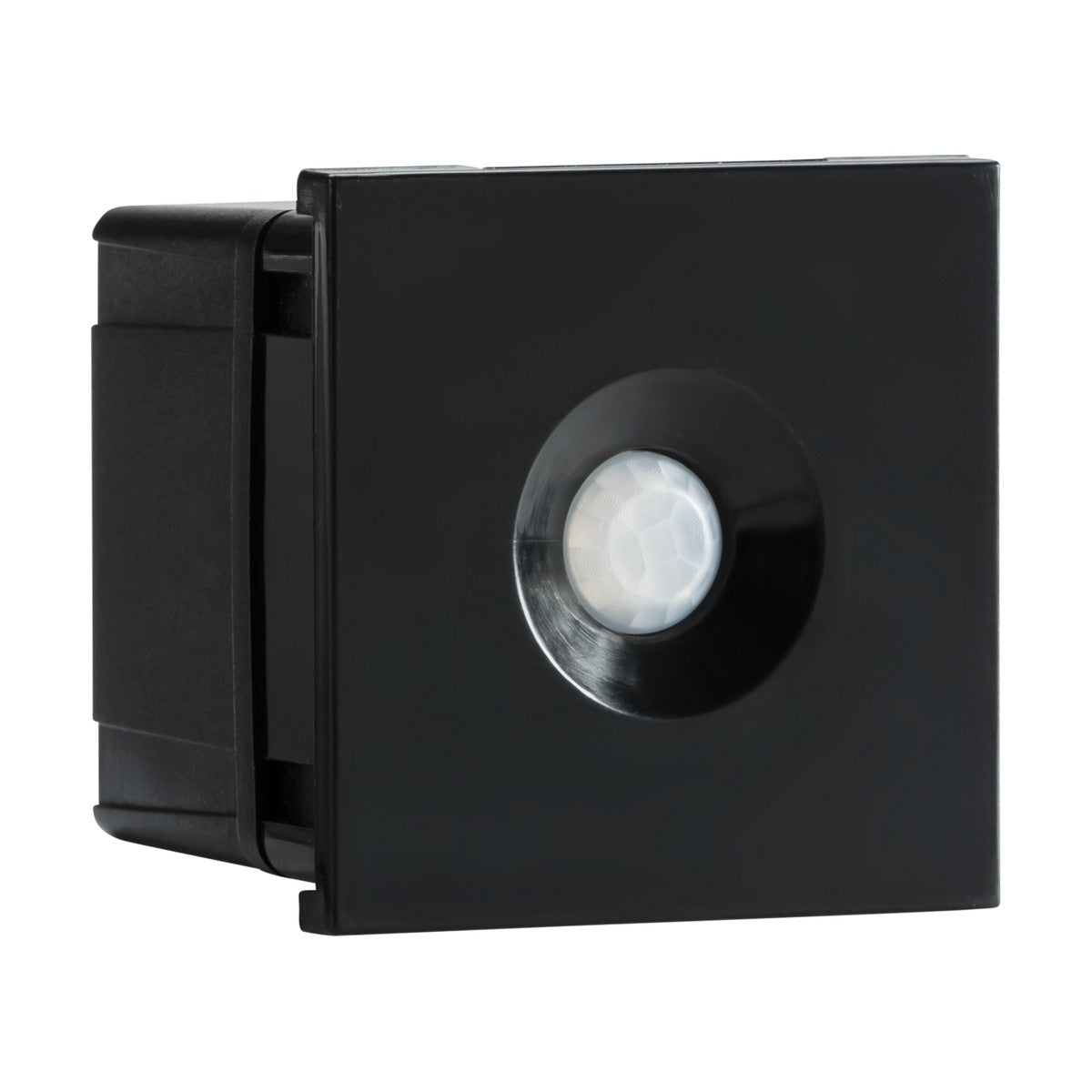

Introducing the 120° PIR Sensor Module 50x50mm - Black, a compact and sleek square-designed motion sensor with a central round white detection area. It features passive infrared technology and is lux sensitive, making it perfect for wall mounting within Euro modular frames.
