1 Gang 2-Way 10-200W (LED 10-100W) Trailing Edge Dimmer Module - Polished Chrome

£999
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

This trailing-edge dimmer module offers 2-way switching with rotary dimming and push on/off functionality, rated at 10-200W for halogen and incandescent lamps or 10-100W for LEDs.

Compatible with GLS, mains voltage halogen, and LV halogen lamps with dimmable magnetic or electronic transformers, it also supports LED dimmable lamps and drivers within a range of 10-100W. To ensure optimal performance, lamps or drivers must be fully dimmable, as this unit is not suitable for non-dimmable products.

Please check with the lamp manufacturer for compatibility.

We recommend a maximum of 10-12 lamps per grid dimmer to prevent any inrush current problems.

Specification
Height 56.3 mm
Width 25 mm
Projection 54 mm
Recessed Depth 23 mm
Min. Mounting Box Depth 35mm
Construction ABS
Construction 2 & steel
Finish Polished Chrome
IP Rating IP20
Primary Voltage 230V 50Hz
Warranty 2
Downloads

Product Specification Sheet

You Might Also Like

Recommended For You

    Our Reviews

    From first click to final installation, our customers share how Niori lights up their spaces. Read their words and envision what’s possible for yours.

    Featured Projects

    Step into our portfolio and see how we transform homes, restaurants, and commercial spaces and more, worldwide. Click here for a closer look at our latest projects.

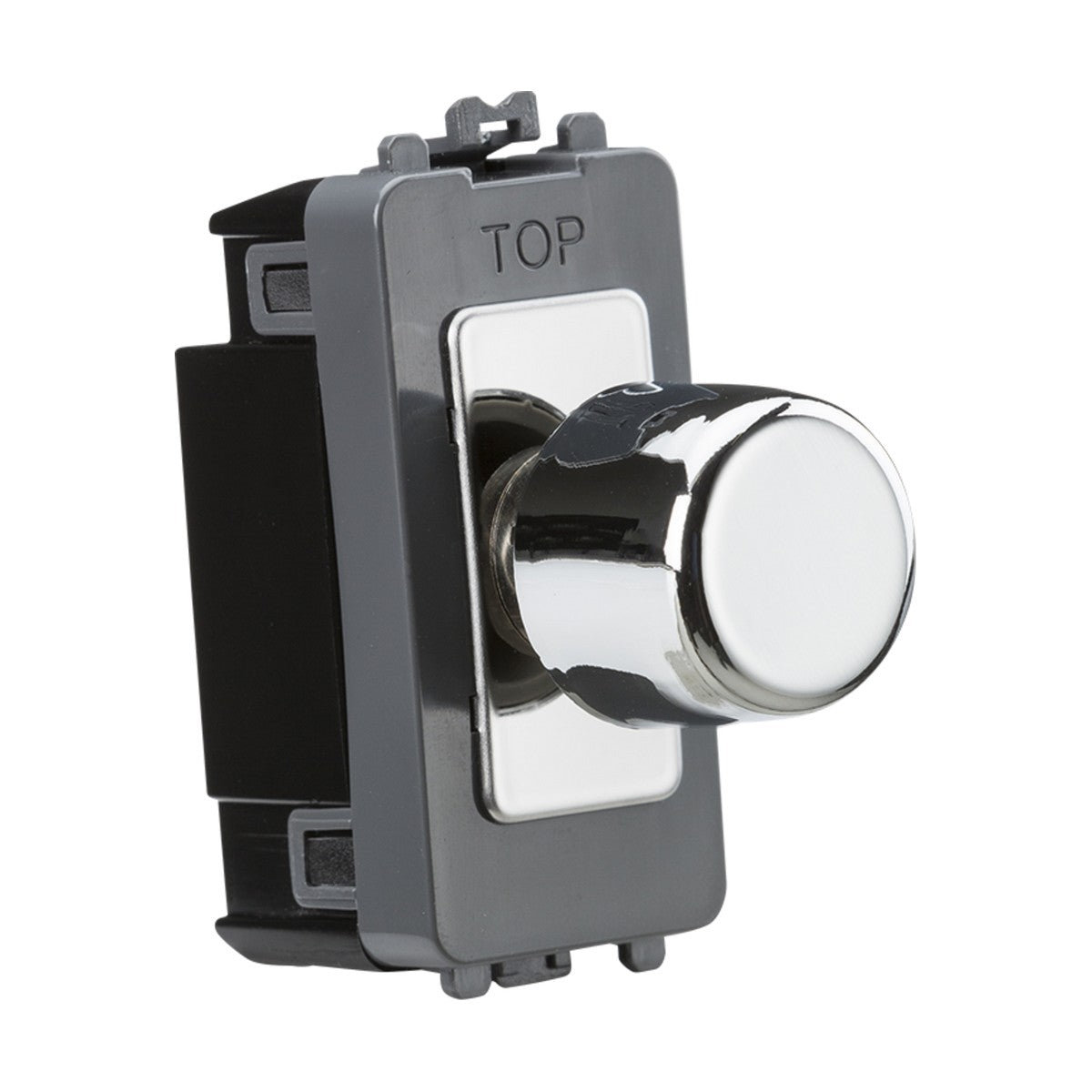

    The Knightsbridge Grid Polished Chrome rotary dimmer switch, labeled 1 Gang 2-Way 10-200W (LED 10-100W) Trailing Edge Dimmer Module, features a round metallic knob and rectangular base. Ideal for LED dimmable lighting, it's designed to smoothly adjust light intensity with its efficient rotary dimming technology.
