5A IP65 Photocell Switch

£799
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
30 Day Returns
Flexible payment options

Direct wire-in thermal photodiode dusk to dawn sensor. Suitable for mounting in appropriate light fittings and suitable enclosures. Ideal for controlling lighting automatically based on the ambient lighting level.

  • 230V AC 50Hz
  • IP65 rated (once installed)
  • Max. load: 500W Incandescent / 850VA Inductive / 300W LED
  • Operating range: On 10-20lux / Off 30-60lux
  • Time delay: 20-120 seconds
  • Ambient temperature: -40°C to 70°C
  • Relative humidity: 99% RH
  • Pre-wired with 300mm cable
  • Sensor projection: 21mm
  • Cut out required: 17mm
  • Seals and locknuts included
Length 52.5 mm
Width 29 mm
Projection 21 mm
Cut-out Diameter 17 mm
Min. Mounting Box Depth 25mm
Construction Polycarbonate
Finish Black
Class II
IP Rating IP65
Primary Voltage 230V 50Hz
Cable Length 0.3 m
Warranty 2

Product Specification Sheet

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

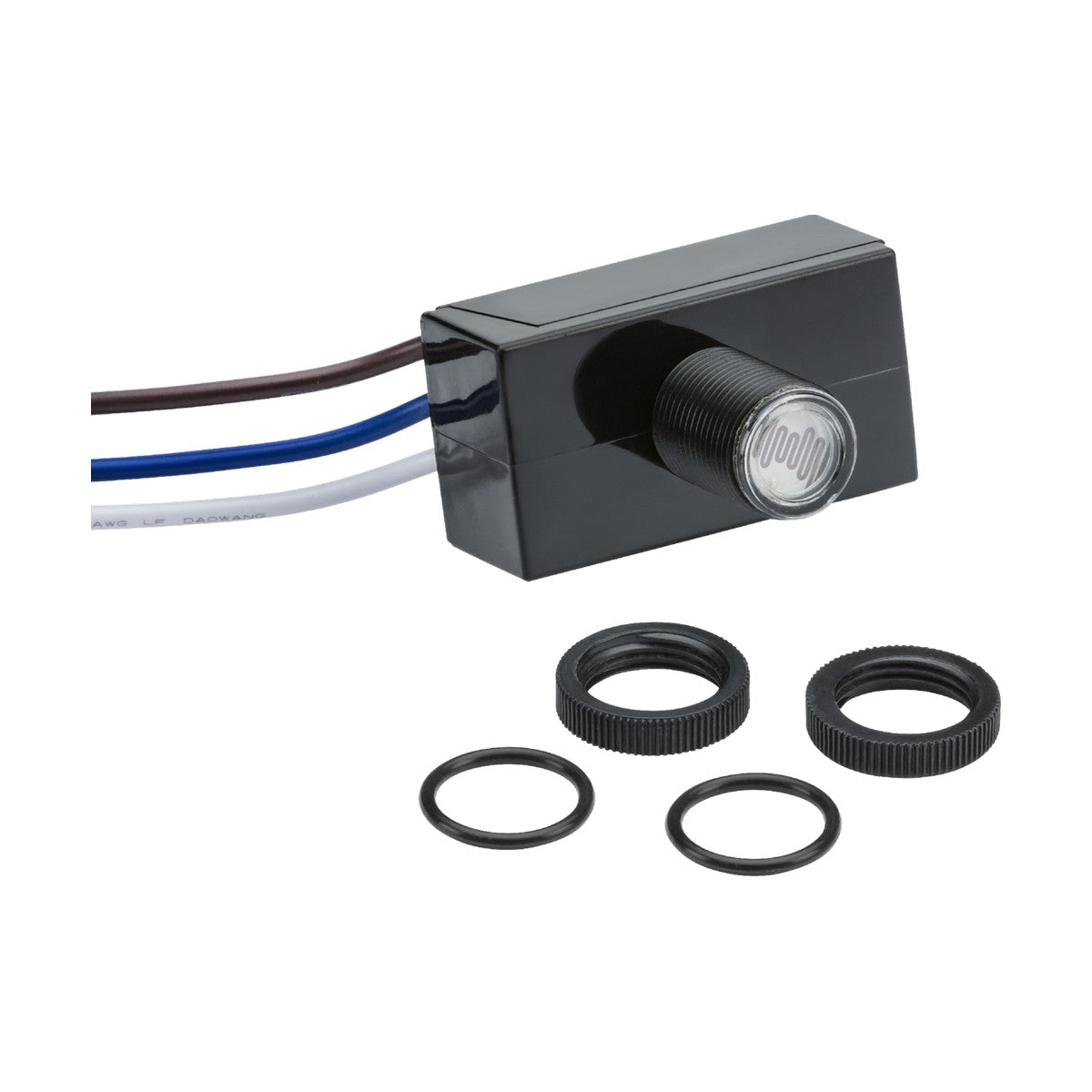

    A 5A IP65 Photocell Switch features a black rectangular thermal photodiode sensor with a cylindrical protrusion on one side. It includes three extending wires—brown, blue, and white—and comes with three circular rubber rings and two threaded caps for robust protection, ensuring an IP65 rating.
