Adastra UM30 Compact 100V Mixer-Amplifier

£14499
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
14 Day Returns
Flexible payment options

100V mixer-amplifiers with USB audio player, FM tuner and BT wireless receiver in an ultra compact housing. Microphone input, line input and USB/FM/BT sections are governed by front panel volume controls and a master volume. Mono output to either 100V line or 8 Ohms speaker load is connected via screw terminals on the rear panel. Supplied with hardware for mounting 2 units side by side in a 1U 19" rack space. Designed as a versatile solution for small to medium PA installations.

  • Ultra compact form factor
  • Efficient class D amplifier design
  • Internal USB/FM/BT audio player
  • 100V line or 8 Ohms operation
  • Bluetooth with programmable ID
Power supply 170-264Vac, 50Hz (IEC) or 24Vdc
Amplifier : construction Class D + transformer output
Audio source Internal USB/FM/BT player
Inputs 1 x mic (6.3mm), 1 x line (2 x RCA), 1 x aux (3.5mm)
Line output 2 x RCA (mono)
Speaker outputs Screw terminals - 100V / 8 Ohms / Com
DC power 24Vdc screw terminals
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Bluetooth version 5.0
Output power : rms 30W
Alarm output N/A
Weight 2.35kg
Dimensions 249 x 210 x 44mm

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

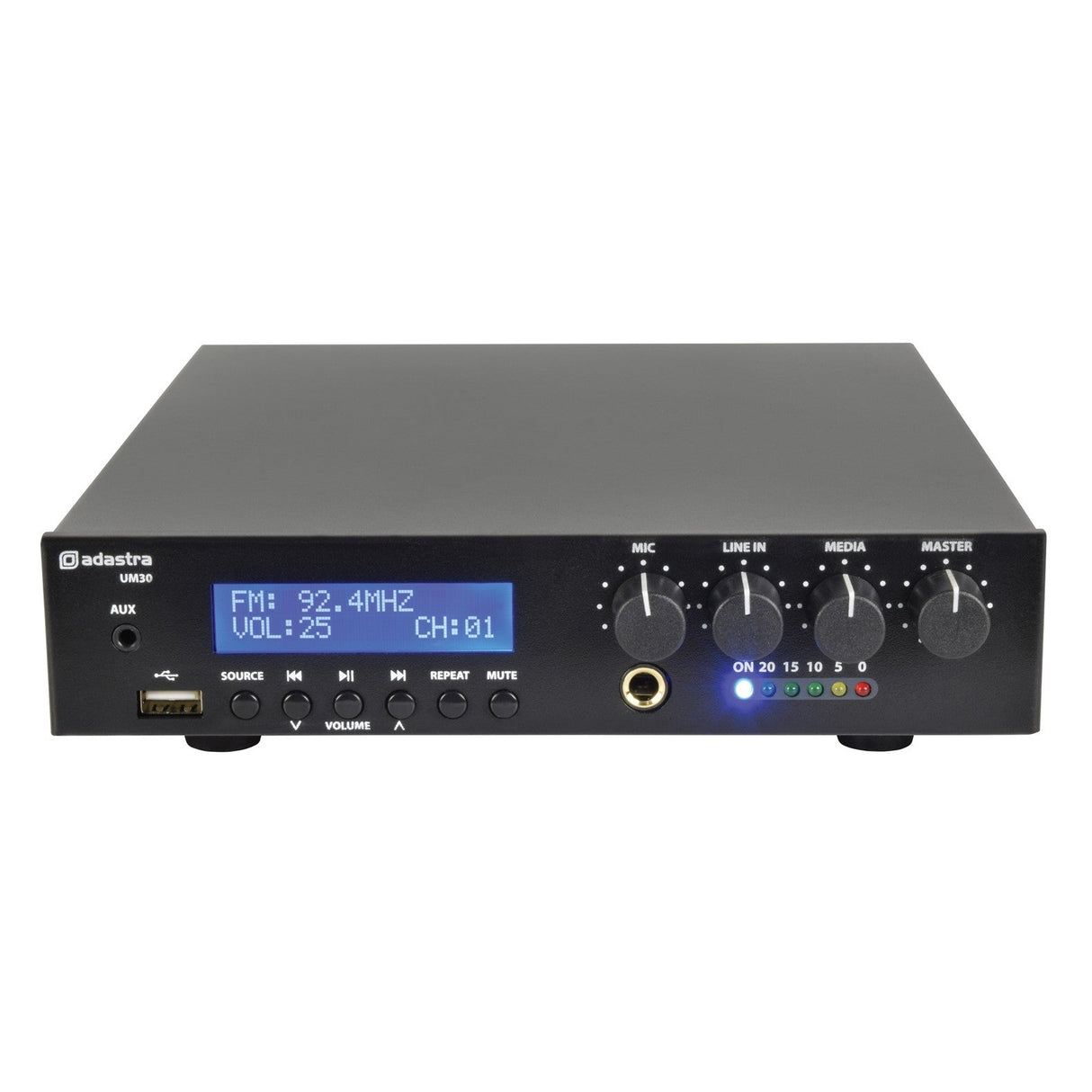

    The Adastra UM30 Compact 100V Mixer-Amplifier in black includes a digital display set to FM 92.4 MHz and volume level 25, and is designed with input knobs, a USB port for audio playback, an aux input, control buttons, LED indicators, and an integrated Bluetooth wireless receiver for versatile listening options.
