Adastra UA30 Compact 100V Mixer-Amplifier

£10699
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Only a few left in stock!
14 Day Returns
Flexible payment options

100V mixer-amplifiers with a 5-input mixer in a half width 1U housing. 3 switchable mic/line inputs, an RCA line input and a 3.5mm Aux input are governed by front panel volume controls and a Master output control. Mono output to either 100V line or 8 ohms speaker load is connected via a removable screw terminal connector on the rear panel. Supplied with rack-mounting hardware which can be configured to mount a single unit against a wall or under a worktop. Designed as a versatile solution for small to medium PA installations.

  • 24V fire alarm mute contacts
  • Supplied with hardware for rack-mounting 2 units
  • 5 input channels
  • 100V line or 8 Ohms operation
  • Switchable +20V phantom power CH1
Power supply 170-264Vac, 50Hz (IEC)
Amplifier : construction Class D + transformer output
Inputs Mic/line (combo), 2 x mic/line (6.3mm), line (RCA), aux (3.5mm)
Line output 2 x RCA (mono)
Speaker output Euroblock terminals: 100V / 8 Ohms / Com
Mute 24V relay contacts
THD <0.4% @ 1kHz
Input impedance 1k Ohms (mic/line)
Input sensitivity -10dB (line), -45dB (mic)
SNR 80dB (line), 75dB (mic)
Frequency response 100Hz - 18kHz
Phantom power +20V CH1 (XLR or rear terminals)
Output power : rms 30W
Dimensions 249 x 210 x 44mm
Weight 2.35kg

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

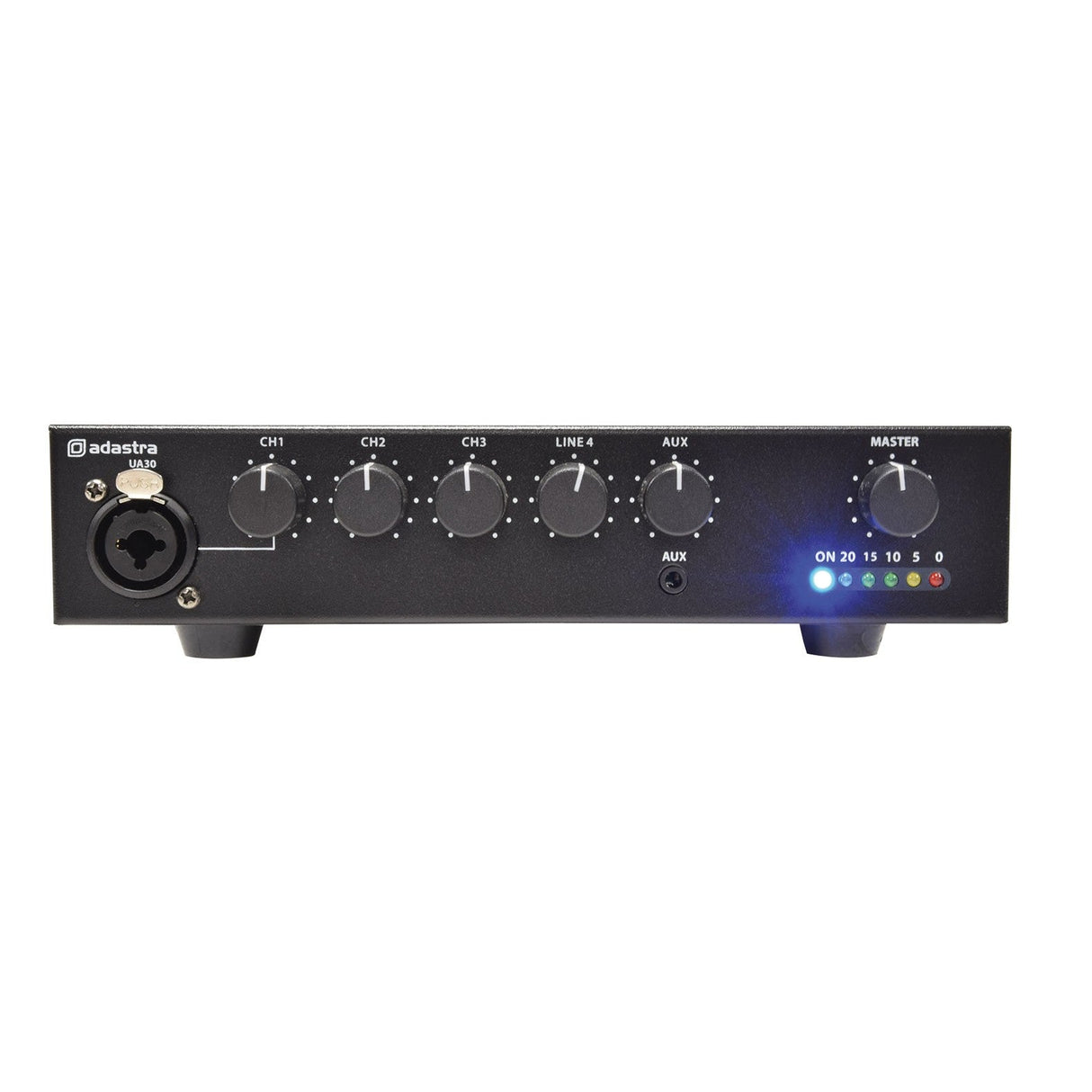

    Front view of the Adastra UA30 Compact 100V Mixer-Amplifier in black, showcasing control knobs labeled CH1, CH2, CH3, LINE 4, AUX, and MASTER. It includes mic/line inputs on the left and LED indicators on the right that display power levels ranging from 0 to 20—perfect for PA installations.
