Citronic CX34 Active Crossover 2/3/4-Way

£10299
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
14 Day Returns
Flexible payment options

The CX34 is a 2 or 3-way stereo or 4-way mono active crossover designed to split frequencies so that low frequencies are delivered to the amp driving the sub cabinets and mid/top frequencies are delivered to the amp driving the mid/top frequency cabs. This type of system is more efficient and delivers more accurate sound quality, especially in larger PA systems.

  • 2 or 3-way stereo, 4-way mono crossover
  • 19" rack mountable
  • Linkwitz-Riley 24dB/octave, state variable
  • Continuously adjustable cutoff frequencies
  • 40Hz ultra-low frequency cut
  • Phase invert function
  • Inputs and outputs via XLR
Power supply 115/230Vac, 50/60Hz (IEC)
Input impedance : balanced 50k ohms
Input impedance : unbalanced 25k ohms
Output impedance 200 ohms
Crossover ranges 45-960Hz (switchable 10x) or 450Hz-9.6kHz
Filter slope 24dB/octave
Frequency response 20Hz - 20KHz, +0/-0.5dB
Signal to noise ratio >90dB
THD <0.004% @ +4dBu, 1kHz
Dimensions 482 x 44 x 170mm
Weight 2.5kg

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

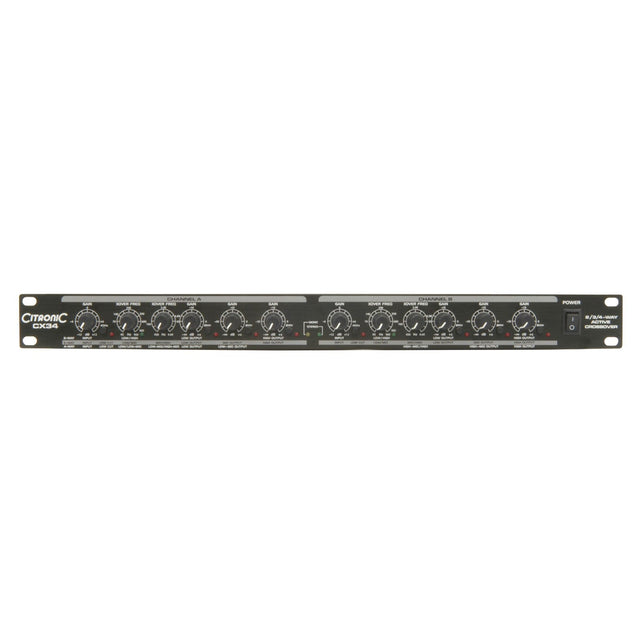

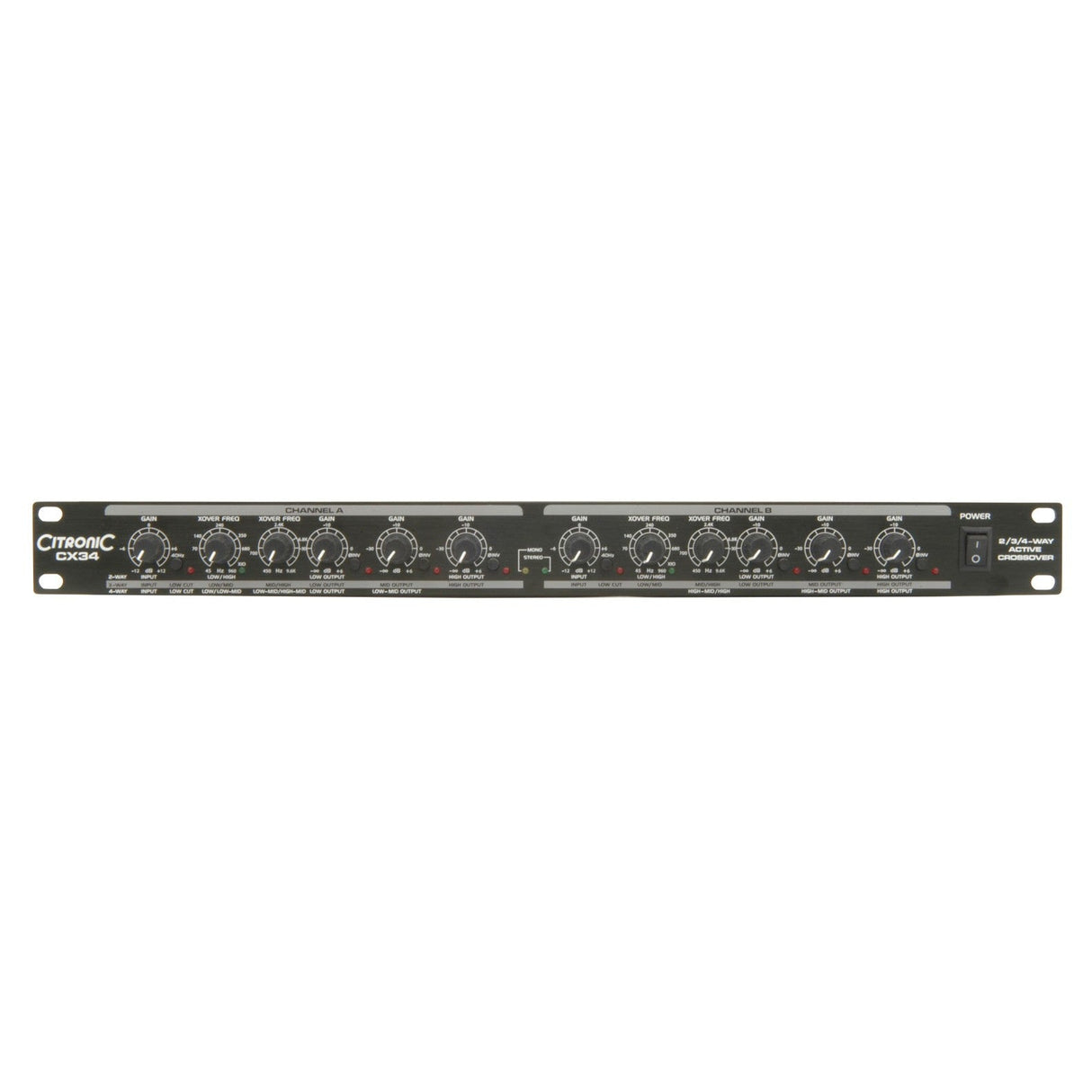

    The black Citronic CX34 Active Crossover 2/3/4-Way audio processor includes a range of knobs and switches for sound equalization and processing, featuring an active crossover for precise frequency splitting. This rack-mounted unit is equipped with a digital display on the left side for easy monitoring.
