Citronic CSX-18 Live Mixer With USB/BT Player + DSP Effects

£25799
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
14 Day Returns
Flexible payment options

Fully featured live mixing console with 14 mono mic/line inputs on XLR/jack and 2 stereo line jack inputs. All channels have gain, 3-band EQ, switchable pre/post aux output, FX send, pan, PFL switch and 60mm channel faders. Phantom power is switchable to all XLR inputs for condenser microphones and active DI boxes. Internal effects take the form of a 16-program 24-bit DSP engine with independent level fader and AFL switch for monitoring. An inbuilt media player can accept a USB memory stick for playback of stored audio tracks and can also record the mix output for documenting rehearsals or performances. B/T wireless compatibility enables pairing with a smart phone or tablet for remote playback. Global EQ is handled by a 7-band graphic EQ and the overall mix is fed from master faders to left & right balanced XLR outputs. A 2-track RCA line input has a level control for mixing in a playback source. 2-track RCA output can be connected on to recording equipment or as an additional output feed if required. Low noise and clean audio path with enough features and routing options for live performances, conferences and theatre productions.

  • Integral USB player/recorder with BT receiver
  • 24-bit DSP effects with 16 programs
  • 14 mono balanced XLR/jack inputs
  • 2 stereo jack inputs
  • 7-band graphic EQ
  • Switchable +48V phantom power
Power supply 100-240Vac, 50/60Hz (IEC)
Fuse T3AL @ 230V / T6AL @ 115V
Power consumption max. 30W
EQ master bands 63, 160 , 500, 1k, 2.5k, 6.3k, 16k (all in Hz)
EQ: high 12kHz ±15dB (shelving)
EQ: mid 2.5kHz ±15dB (band pass)
EQ: low 80Hz ±15dB (shelving)
Dimensions 622 x 402 x 108mm
Weight 6.3kg
Channel crosstalk >82dB
Input level +24dBu (mic/line), +20dBu (stereo line) max.
Output level +26dBu (XLR), +20dBu (TRS jack) max.
Frequency response 20Hz - 30kHz (-0.5dB)
CMRR >75dB (Mic @ 1kHz)
THD +N <0.01% (Channel to mix out)
Noise rms : 22Hz-22kHz EIN -122dBu, Residual output ?-90dBu, Main/Aux mix ?-82dBu
Phantom power +48V globally switched to XLR inputs
2-track L+R RCA, 4k Ohm, -2dBu
REC output L+R RCA, <75 Ohm, -2dBu
DSP effects processor 24-bit sigma-delta, 64/128 times over-sampling, 40kHz
Output : master XLR balanced, ?75 Ohm, +4 dBu, Max.+22 dBu
Headphone imped

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

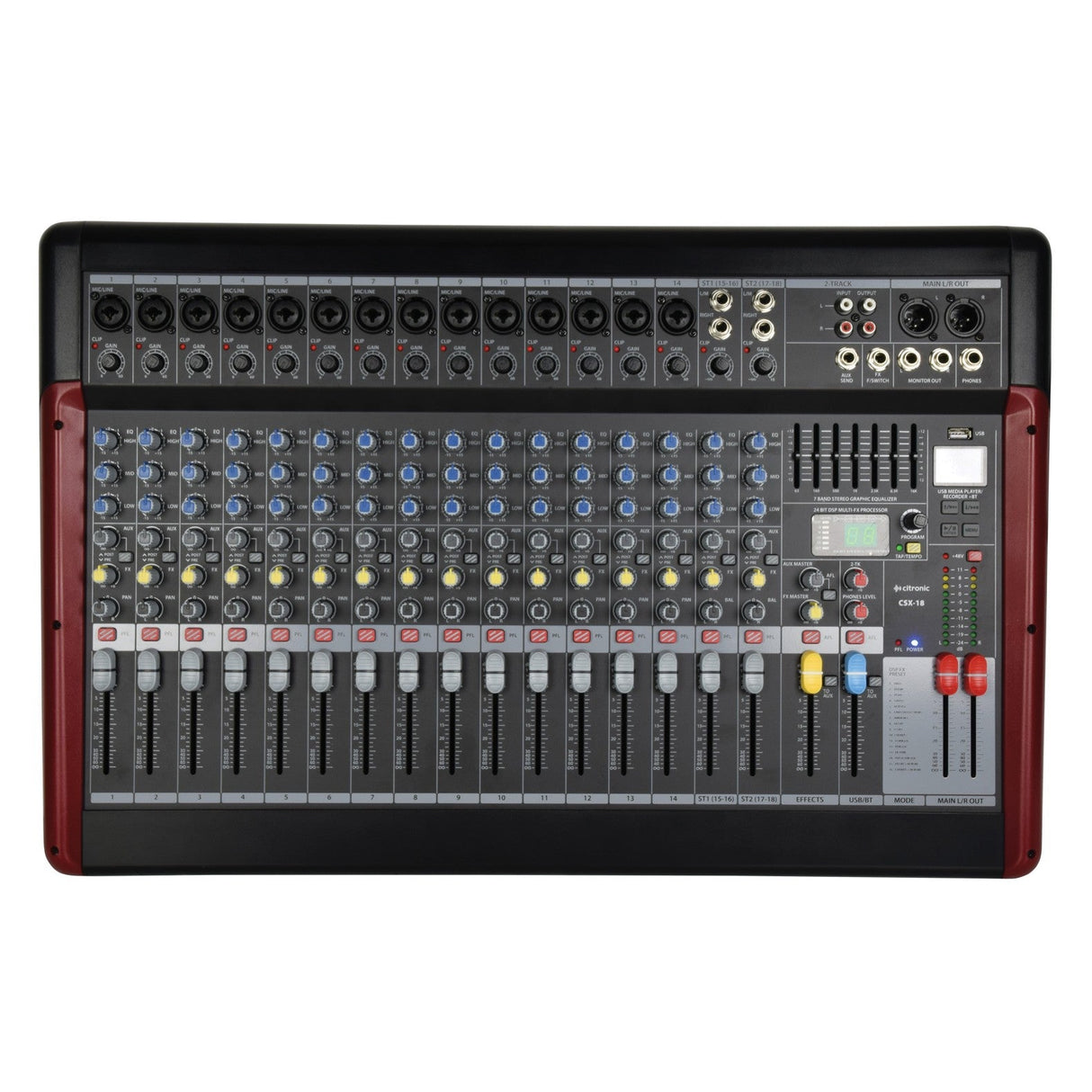

    The Citronic CSX-18 Live Mixer With USB/BT Player + DSP Effects is a large live mixing console featuring multiple channels, knobs, and faders, along with a variety of input and output ports on the top panel. It is equipped with an LCD screen and control buttons on the right side, includes phantom power support, and showcases a striking black and red color scheme.
