Citronic CSD-8 Compact Mixer With BT Receiver + DSP Effects

£11699
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
14 Day Returns
Flexible payment options

Compact format audio mixer with 2, 4 or 6 mono input channels and a stereo line input. Each mono channel has a combo XLR/jack input with individually switchable mic/instrument impedance and +48V phantom power for the XLR. Input channels have High/Low EQ and Pan controls. The Bluetooth pairing button enables wireless connection to a smart phone or tablet for playback. All CSD mixers feature a 16 program DSP effects section with digital reverbs, delays and modulation effects for vocals and instruments. Output is delivered on a pair of balanced XLR connectors and offers very low noise operation for high quality studio or live performances.

  • Bluetooth pairing for smartphone or tablet
  • 16 program, 24-bit DSP effects engine
  • Individually switchable +48V phantom power
  • Supplied with DC power adaptor
Power supply 5Vdc 1A (adaptor included)
Power consumption max. 5W
EQ: low ±15dB @ 80Hz
EQ: high ±15dB @ 12kHz
Phantom power +48V individually switchable (XLR inputs only)
Input impedance : mic 2k Ohms
Input impedance : instrument 1M Ohms
Input impedance : line 20k Ohms
Audio source Bluetooth receiver
Bluetooth version 2.1 + EDR
Frequency response 20Hz - 20kHz (±0.5B)
THD +N <0.03% @ 1kHz
Dynamic range 102dB
Crosstalk : stereo 92dB
Output Left + Right balanced XLR
Output impedance 120 Ohms
Max. output level 3Vrms
Effects 16 program DSP (24-bit sigma-delta, 40kHz)
Inputs 6 x combo XLR/jack + stereo jack
Dimensions 274 x 166 x 66mm
Weight 1.46kg

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

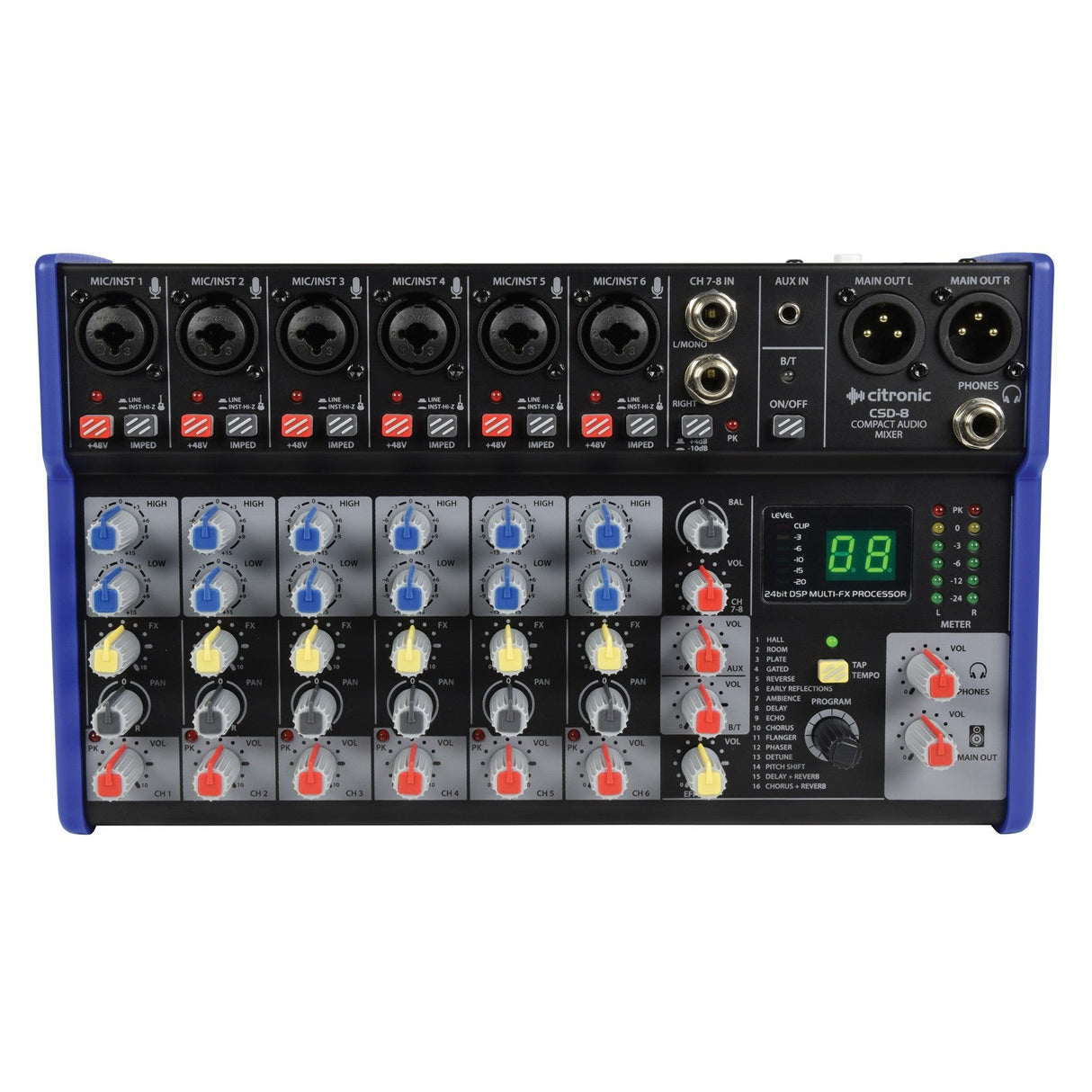

    Introducing the Citronic CSD-8 Compact Mixer, equipped with DSP effects and Bluetooth pairing capabilities. This versatile audio mixer features various input ports, control knobs, and multiple MIC/LINE channels with colored adjustments for easy operation. The control panel boasts a digital display and clearly labeled outputs for main, aux, and headphone connectivity.
