Citronic CEQ231 2 x 31-Band Graphic EQ

£14299
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
14 Day Returns
Flexible payment options

The CEQ231 is a 19" 2U rack mounted dual 31-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 20Hz to 20kHz for ultimate EQ control.

  • 2 x 31-band 1/3 octave ISO spacing
  • RF filtered servo-balanced inputs
  • Constant Q each band
  • Bypass switch for EQ comparison
  • Low-cut switch each channel
  • Gain control each channel
  • LED VU meters
  • 19" rackmount 2U
Power supply 115/230Vac, 50/60Hz (IEC)
Frequency response 20Hz-20kHz
Input impedance : balanced 40k ohms
Input impedance : unbalanced 20k ohms
Output impedance : bal/unbal 330 ohms
Channel separation >50dB
Signal to noise ratio >102dB
THD 0.005%
Dimensions 482 x 88 x 139mm
Weight 3.3kg

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

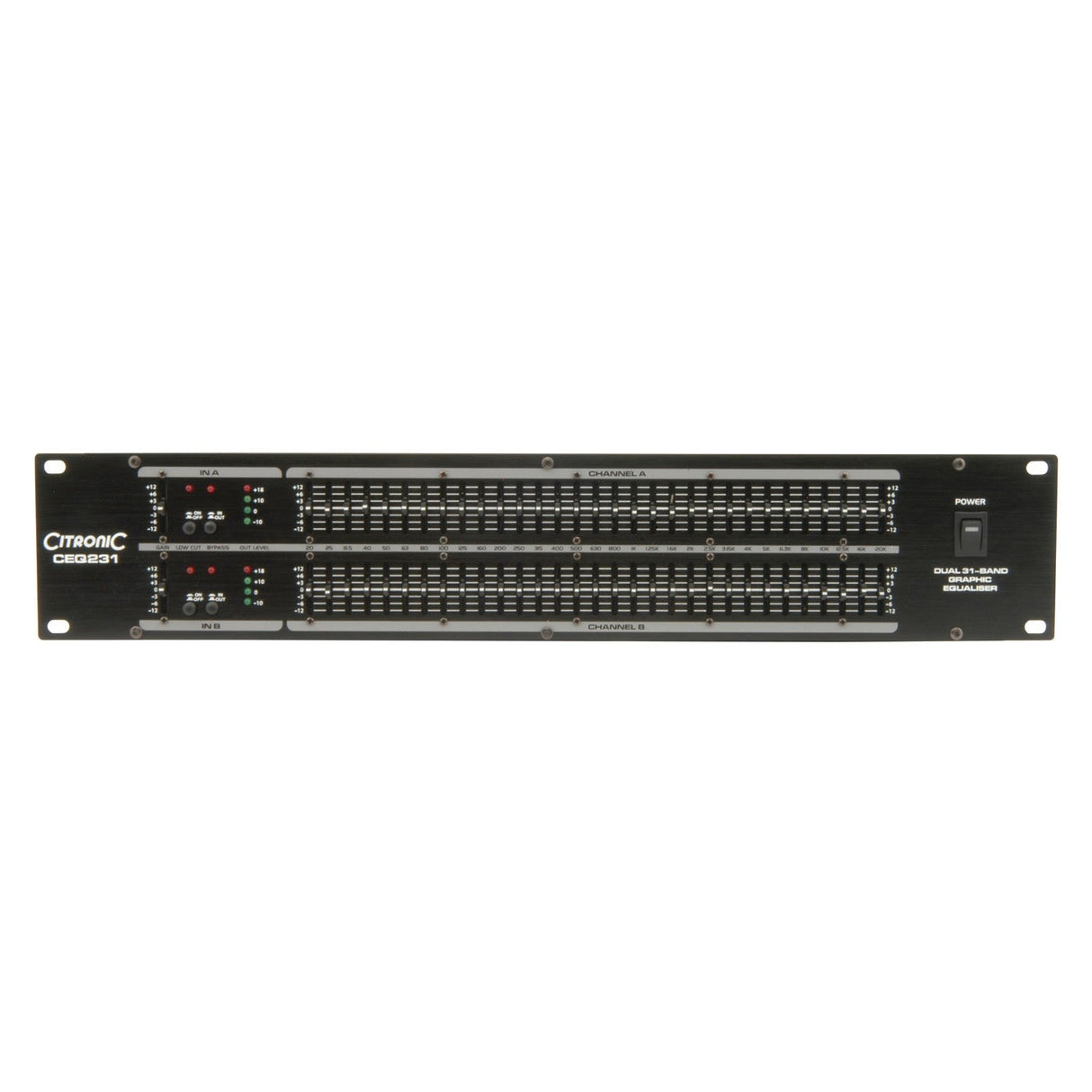

    Front view of the Citronic CEQ231 2 x 31-Band Graphic EQ showcasing its dual 31-band equalizer with LED indicators on a sleek black panel, expertly designed for seamless integration into a 19" 2U rack mount in professional audio setups. Ideal for precise frequency control in any sound environment.
    AVSL

    Citronic CEQ231 2 x 31-Band Graphic EQ

    £14299
    Description

    The CEQ231 is a 19" 2U rack mounted dual 31-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 20Hz to 20kHz for ultimate EQ control.

    Specification
    Power supply 115/230Vac, 50/60Hz (IEC)
    Frequency response 20Hz-20kHz
    Input impedance : balanced 40k ohms
    Input impedance : unbalanced 20k ohms
    Output impedance : bal/unbal 330 ohms
    Channel separation >50dB
    Signal to noise ratio >102dB
    THD 0.005%
    Dimensions 482 x 88 x 139mm
    Weight 3.3kg
    Downloads

    Product Manual

    View product

    The CEQ231 is a 19" 2U rack mounted dual 31-band graphic equaliser, which allows the adjustment of labelled frequencies via the individual cut/boost faders. Up to 12dB of cut or boost for frequencies ranging from 20Hz to 20kHz for ultimate EQ control.

    • 2 x 31-band 1/3 octave ISO spacing
    • RF filtered servo-balanced inputs
    • Constant Q each band
    • Bypass switch for EQ comparison
    • Low-cut switch each channel
    • Gain control each channel
    • LED VU meters
    • 19" rackmount 2U
    Power supply 115/230Vac, 50/60Hz (IEC)
    Frequency response 20Hz-20kHz
    Input impedance : balanced 40k ohms
    Input impedance : unbalanced 20k ohms
    Output impedance : bal/unbal 330 ohms
    Channel separation >50dB
    Signal to noise ratio >102dB
    THD 0.005%
    Dimensions 482 x 88 x 139mm
    Weight 3.3kg

    Product Manual
