Adastra Z5M Zoning Mixer

£9299
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
14 Day Returns
Flexible payment options

2 input, 5 zone mixer with individual volumes for both inputs and a mono switch for each zone. All inputs and outputs are stereo via balanced XLR connectors. Acts as the central mix and control in an installation serving up to 5 separate stereo speaker zones.

  • Fully balanced XLR connections
  • 2 inputs to 5 zones
  • Mono selectable for each zone
Power supply 115/230Vac 50/60Hz (IEC)
Inputs Line 1 L+R, Line 2 L+R, balanced XLRF
Outputs Zone 1 to 5 L+R, balanced XLRM
Input impedance 40k Ohms
Output impedance 220 Ohms
Frequency response 20Hz - 25kHz, +0/-1dB
Signal to noise ratio >100dB
THD <0.005%
Dimensions 483 x 175 x 44mm
Weight 2.2kg

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

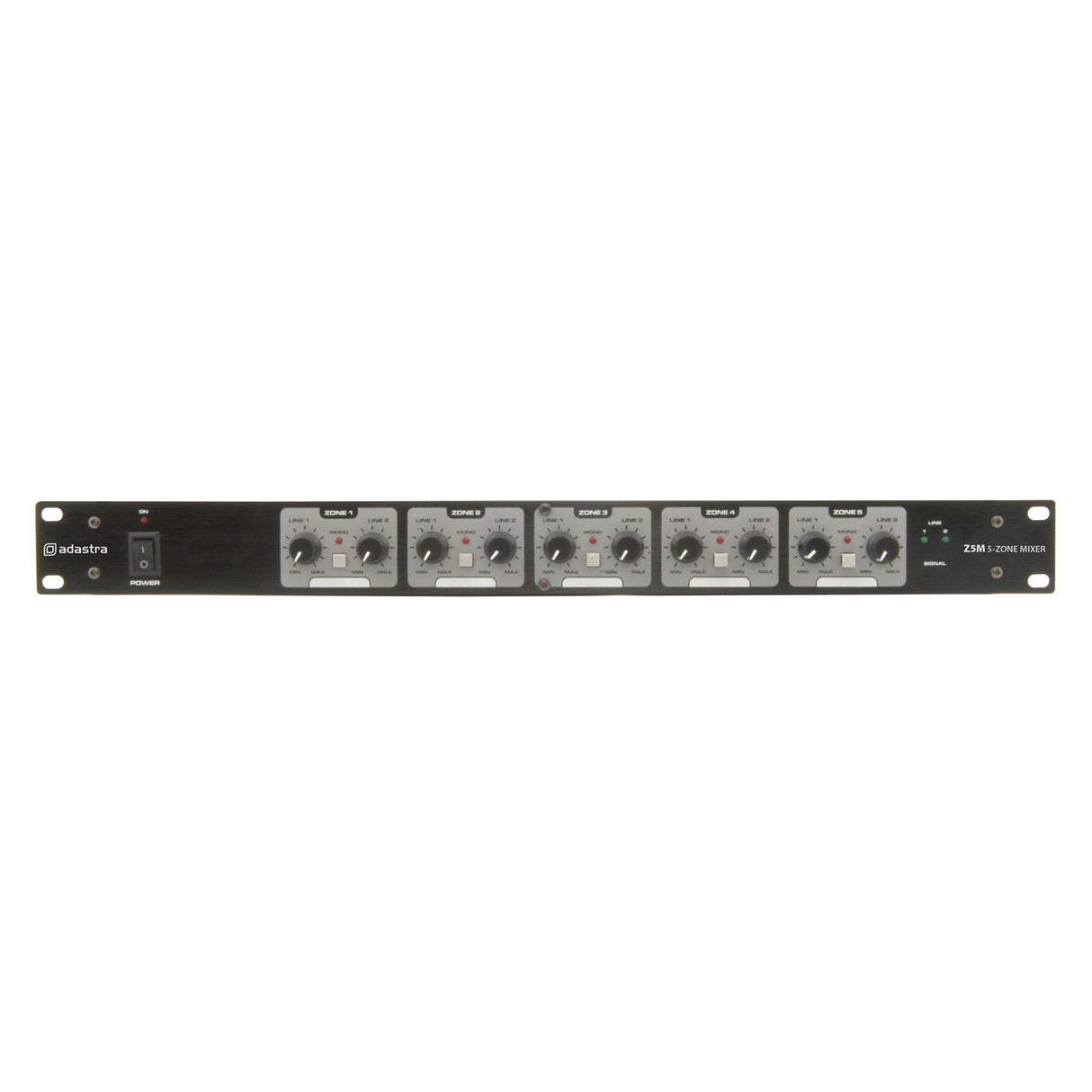

    The Adastra Z5M Zoning Mixer is a versatile audio mixer with a black metal front panel, featuring multiple knobs and switches labeled A to E, one main volume control, and balanced XLR connectors for seamless audio management across five stereo speaker zones.
