Adastra RZ45 Remote Zone Audio Matrix

£42099
The RRP is the manufacturer's recommended retail price of the item.
incl. VAT
Limited stock!
14 Day Returns
Flexible payment options

1U rack-mountable audio matrix with 4 selectable inputs to 5 output zones. An inbuilt media player section features playback from USB media, 3.5mm aux input or Bluetooth. A TR86 touch operated remote wall plate is included to control source and output level for one of the zones. Additional TR86 wall plates may be added up to the full 5 zones as required. Outputs to zones can be monitored via an assignable 3.5mm stereo headphone output. For global alerts and announcements, a front and rear XLR input is provided for a microphone, operated via a paging button that overrides the selected or local audio source for all zones. The RZ45 forms the command centre for installations ranging from basic remote control to a fully specified multi-room audio matrix.

  • Supplied with one touch remote wall plate (expandable up to 5)
  • 4 selectable input sources or local audio to any zone
  • Up to 5 remotely operated zones
  • Inbuilt USB/BT audio player
  • Emergency mute and audio in contacts
  • Remote wiring via standard network type cable
  • Bluetooth with programmable ID
Power supply 100-240Vac, 50/60Hz (IEC lead included)
Inputs Paging mic. (XLR) + 3 x stereo line (RCA)
Phantom power +24V switchable for paging mic.
Audio source USB/Bluetooth media player
Outputs 5 x stereo zones (RCA)
Remote control connection 8P8C (RJ45)
Dimensions 483 x 177 x 44mm
Weight 1.76kg
Monitor outputs Stereo 3.5mm headphone jack (assignable)
Emergency control 24V mute contacts and emergency audio input
Fuse T1AL
Output impedance : line 600 ohms
Microphone : input sensitivity -41dBV
Line input : sensitivity -12.5dBV
Call station input : sensitivity +4dBV
EMG input: sensitivity -10dBV
Signal to noise ratio : mic 65dB
Signal to noise ratio : line 73dB
Bluetooth version v2.0
Frequency response : ±3dB 20Hz - 20kHz
Attenuation -30dB (paging)
THD +N <0.1% @ 1kHz

Product Manual

Have a question?
We're here to help
Call Us

You Might Also Like

Recommended For You
    Rated 4.5 / 5
    Trustpilot Rating
    Based on 100 reviews

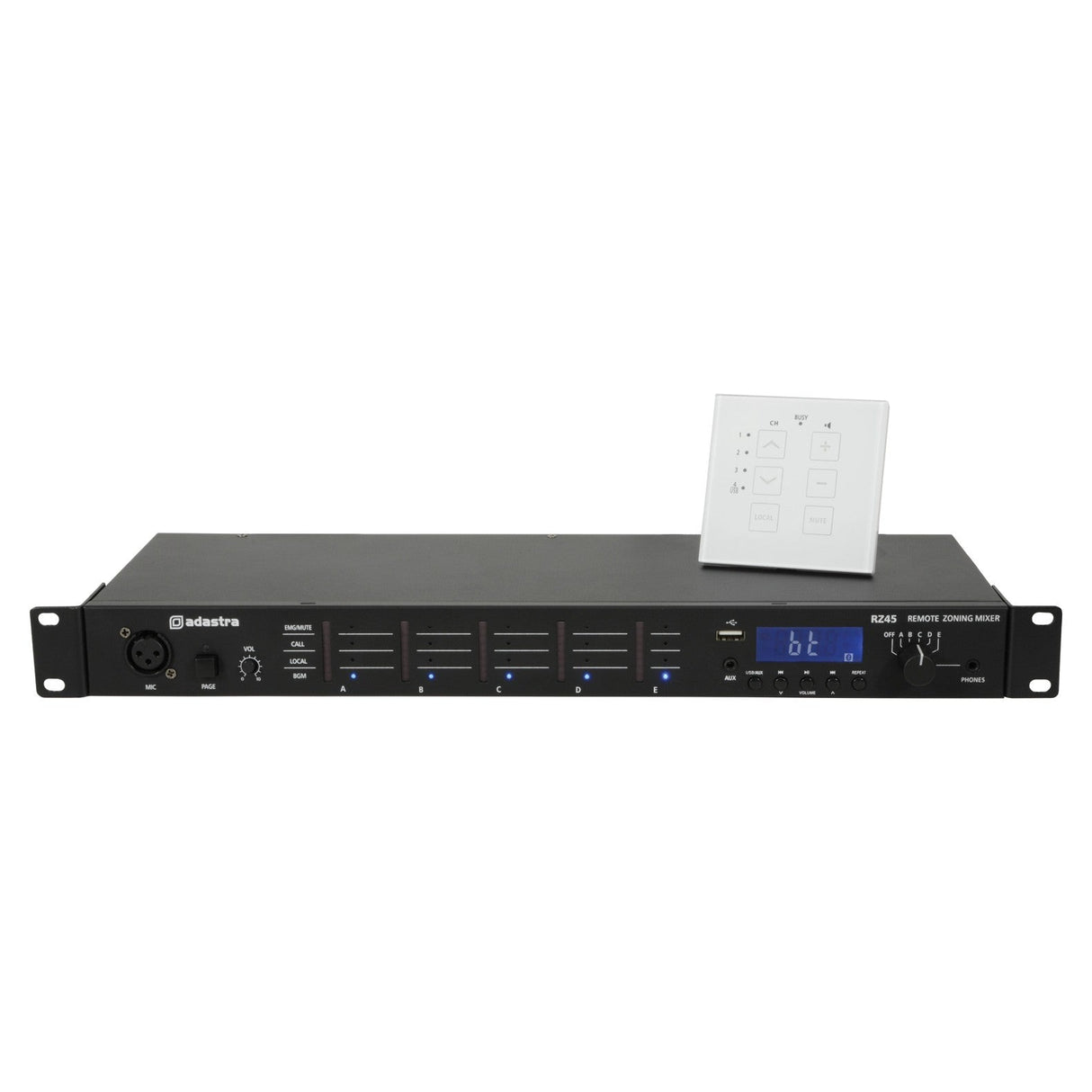

    Image of an Adastra RZ45 Remote Zone Audio Matrix with multiple input and output controls for seamless multi-room audio. It features various knobs, a digital display, and comes with a separate wall-mounted control panel, enhancing your audio experience.
