Voltis Round Frame for Downlight 107mm - Black

£1099
RRP £1440
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

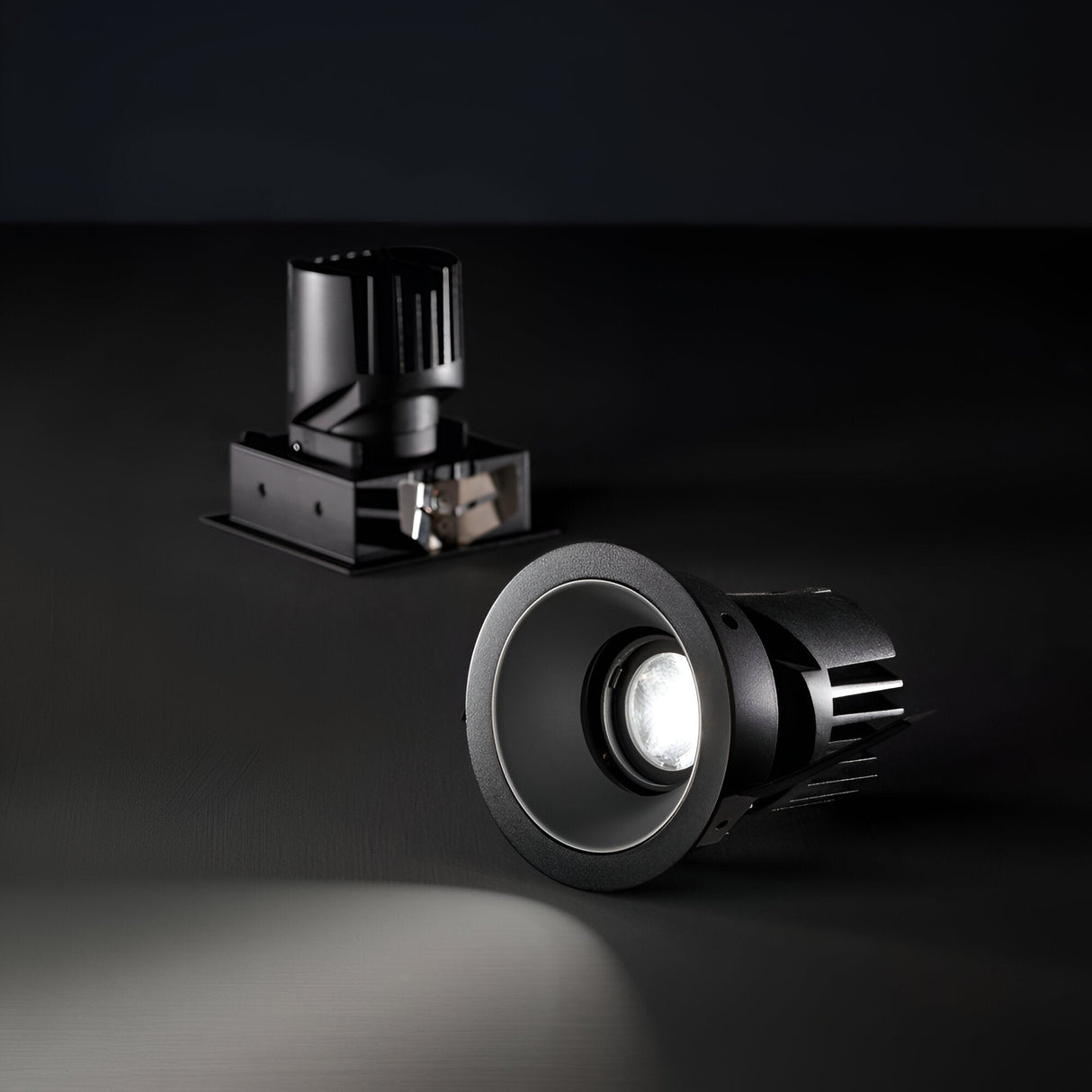

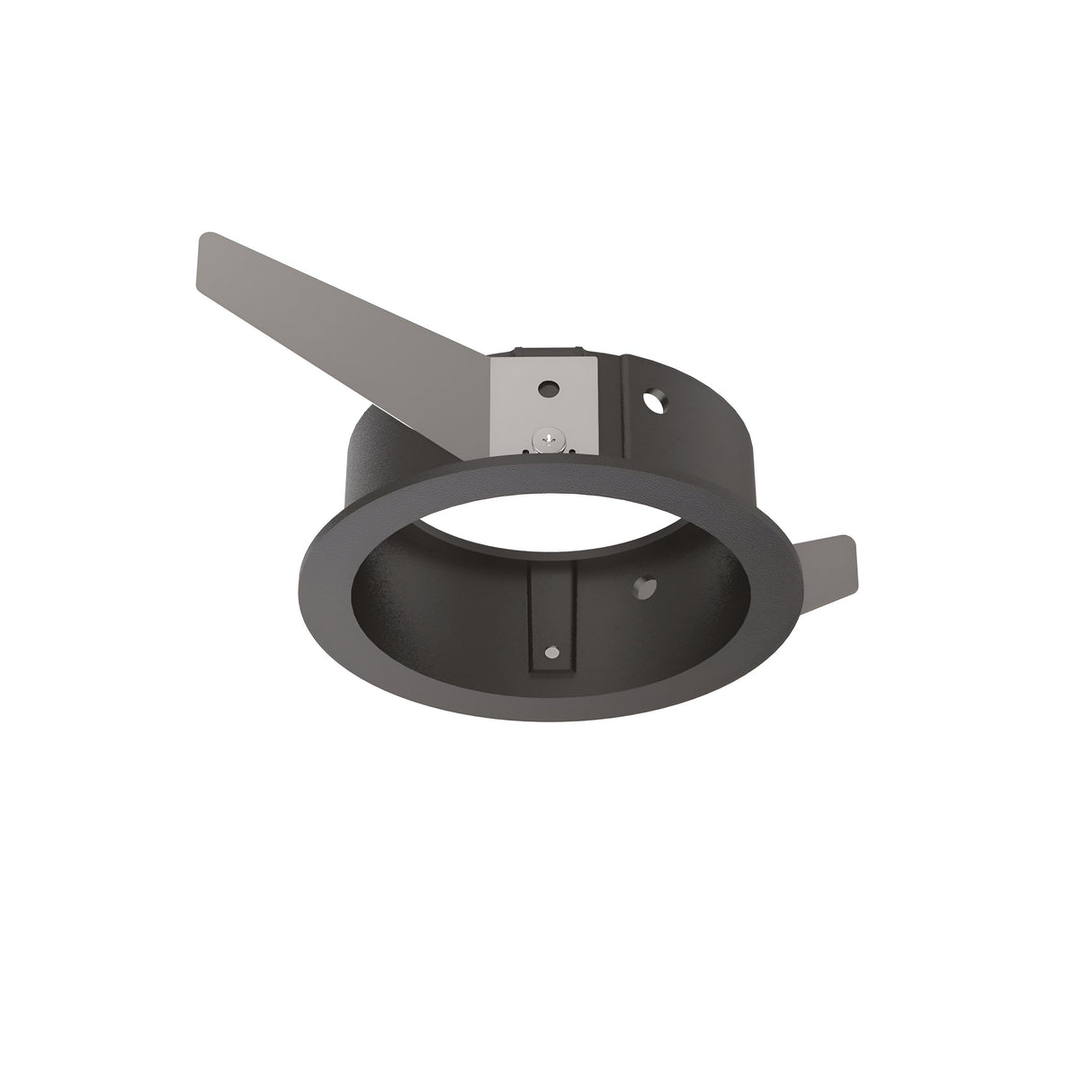

The Voltis is a 107mm diameter round frame in black polycarbonate, designed to house a recessed downlight module as part of Ideal Lux's modular lighting system. The frame accepts a separate light source, reflector and recessed ring (all sold separately), allowing the downlight to be configured for flood, spot or wall-wash applications depending on which reflector and ring combination is chosen.

Designed for residential and commercial recessed lighting installations, the frame cuts into plasterboard ceilings using a 107mm hole saw and is secured with spring-loaded clips that press against the back of the ceiling void. The frame provides the structural housing and finished bezel that sits flush with the ceiling plane once the reflector and ring are clipped in. The 107mm aperture suits spaces requiring broader light distribution than compact 50-70mm downlights, making it appropriate for living rooms, dining rooms, hallways, and retail or office spaces where 400-600mm spacing between fittings is typical.

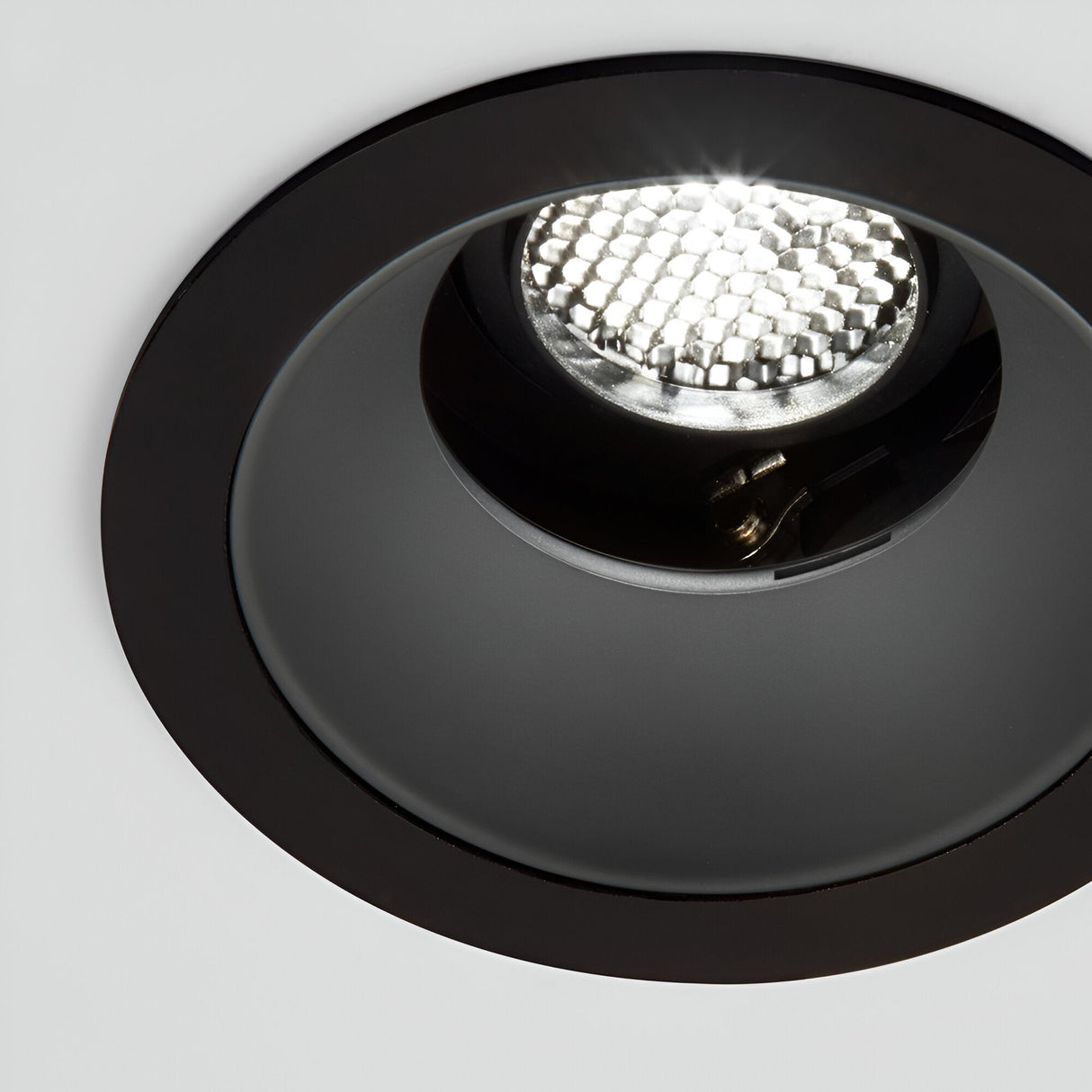

The black finish of the polycarbonate frame creates a defined circular edge around the recessed aperture, which contrasts against white or light-coloured ceilings and integrates cleanly into dark or industrial-style interiors. The Voltis system's modularity means multiple frames can be installed across a ceiling and each fitted with different reflector types to vary beam angles within the same room, or reflectors can be swapped after installation if lighting requirements change.

Specification
Diameter (mm) 107
Warranty 5 Years
Frequently Asked

What else is needed to make this a working downlight?

The Voltis frame is the structural housing only. You need to separately purchase a compatible Voltis light source module, a reflector (which determines beam angle), and a recessed ring (which holds the reflector in place). All three components clip together inside this frame.

What size hole is required in the ceiling?

A 107mm diameter hole is needed. This is typically cut with a 107mm hole saw into plasterboard ceilings with at least 100mm void depth above. The frame's spring clips secure it against the back of the ceiling material.

Can the reflector be changed after installation?

Yes. The modular design allows the recessed ring and reflector to be removed and replaced without removing the frame itself from the ceiling, so beam angles and light distribution can be adjusted later if needed.

What other frame sizes are available in the Voltis range?

Ideal Lux produces the Voltis in multiple diameters and shapes including smaller round frames, square frames, rectangular frames, and double or triple configurations for linear runs. Search for 'Voltis' at Niori to see the full modular system.
