SAT TV Outlet - Polished Chrome Non-Isolated Screwless

£899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

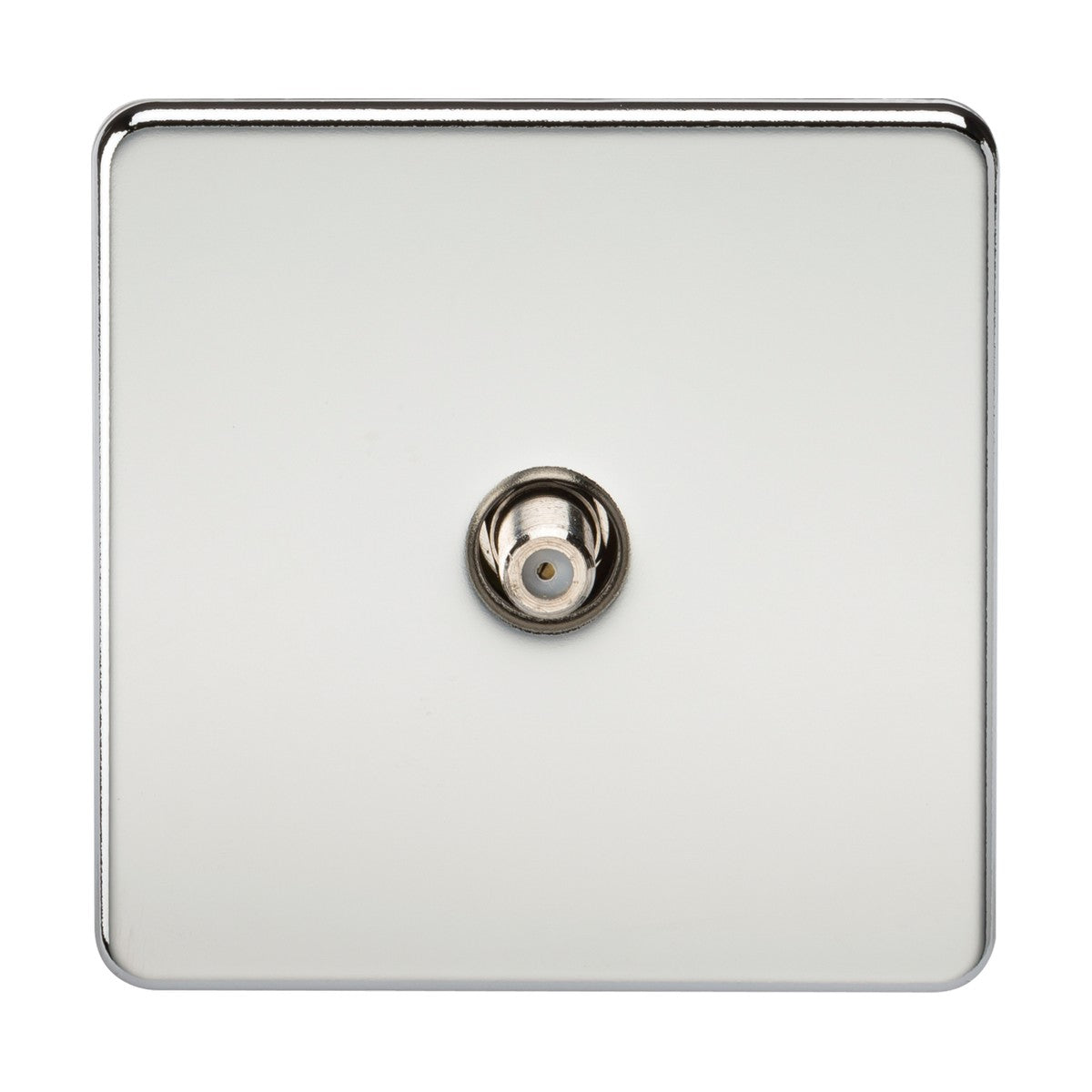

The Knightsbridge SAT TV outlet provides a single F-type coaxial connection for satellite TV signal distribution behind a polished chrome screwless faceplate. The outlet uses a non-isolated signal path, meaning the incoming satellite signal passes straight through to the outlet without a secondary isolation stage, making it suitable for installations where the satellite dish feeds directly to a single receiver or to the final outlet in a multi-room distribution run.

Designed for residential and light commercial satellite installations, the outlet fits a standard 25mm minimum back box depth and uses a screwless cover plate that clips onto a separate metal sub-frame. The F-type connector at the rear accepts standard coaxial satellite cable with a compression or crimp F-connector, and the front-facing F-type socket takes the male F-connector from a satellite receiver or set-top box cable. The clamp and screw terminal at the back provides secure cable retention.

The polished chrome finish is achieved on 201 stainless steel, giving a high-gloss reflective surface that pairs with modern and contemporary interiors. The built-in gasket behind the faceplate keeps dust and paint spray out of the mechanism during installation and redecoration. Knightsbridge backs this outlet with a 25-year guarantee, covering material and manufacturing defects under normal residential use.

Specification
Height 87.5mm
Width 87.5mm
Depth 27mm
Projection 11.8mm
Recessed Depth 15.5mm
Min. Mounting Box Depth 25mmmm
Plate Depth 4.3mm
Construction 201 Stainless steel
Finish Polished Chrome
IP Rating IP20
Earth Terminal Yes
SAT Connection Type F-Type
Terminal Clamp & Screw Terminal
Warranty 25 Year Guarantee
Downloads

Product Specification Sheet

Frequently Asked

What does non-isolated mean?

A non-isolated satellite outlet passes the incoming satellite signal directly through to the front socket without a secondary isolation stage. This makes it suitable for single-receiver installations or as the final outlet in a multi-room distribution system where no further splitting is needed downstream.

What cable connector does it take?

The rear terminal accepts standard satellite coaxial cable fitted with an F-type compression or crimp connector. The front-facing socket takes a standard male F-connector from a satellite receiver or set-top box cable.

Is the screwless plate removable for decorating?

Yes. The polished chrome cover plate clips onto a separate metal sub-frame fixed to the back box. The cover can be removed for painting or wallpapering around the outlet and re-clipped without disturbing the cable connections. The built-in gasket prevents dust and paint entering the mechanism.

What other finishes are available?

Knightsbridge produces this SAT outlet in multiple finishes including brushed chrome, matt black, white, polished brass and antique brass. Use the search function or filters to find other variants in stock at Niori.
