Luxeon Trim Recessed L-Connector Track Horizontal - Dimmable Black

£12199
RRP £17400
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

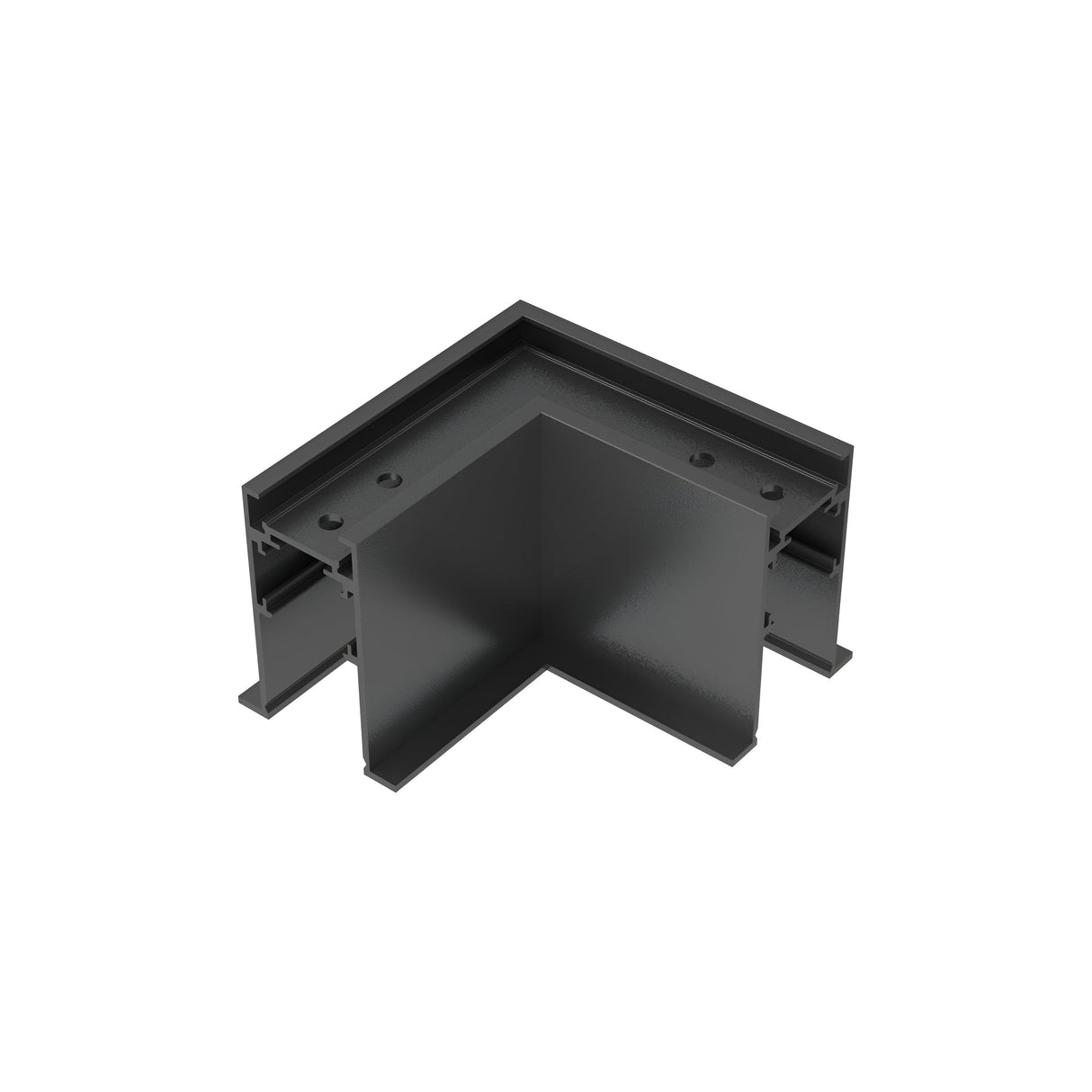

The Luxeon Trim Recessed L-Connector is an 80mm x 80mm horizontal corner piece for connecting two perpendicular runs of Ideal Lux recessed track at 90 degrees. Manufactured from impact-resistant plastic in a matt black finish, the connector houses the electrical contacts that maintain power continuity around the corner whilst keeping the track profile flush with the ceiling plane.

Designed for commercial retail, hospitality and residential installations where track lighting follows an L-shaped ceiling layout, the connector supports dimmable LED track heads when paired with a compatible dimmer on the circuit. The recessed mounting style means the track sits within the ceiling rather than surface-mounted below it, giving a cleaner architectural line in spaces with suspended or plasterboard ceilings. The horizontal orientation allows the track to continue at ceiling level around a corner without dropping vertically.

The black finish coordinates with Ideal Lux's Luxeon Trim black track sections and black track heads, creating a monochrome track system that recedes visually against dark ceilings or contrasts sharply against white. The connector is rated IP20 for dry indoor use and carries Ideal Lux's standard 5-year warranty. Installation requires the track to be cut to length at the corner point, with the connector bridging the two cut ends and providing both mechanical support and electrical continuity.

Specification
Length (mm) 80
Projection (mm) 80
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

Is this connector compatible with all Ideal Lux track systems?

This L-connector is designed specifically for the Luxeon Trim recessed track range from Ideal Lux. It will not fit surface-mounted track systems or tracks from other manufacturers. Check that your existing track is Luxeon Trim recessed before ordering.

What does 'horizontal' mean for this connector?

Horizontal orientation means the connector joins two track runs that continue at the same ceiling level around a 90-degree corner. This differs from vertical connectors that would join track at different heights, such as a wall-to-ceiling junction.

Can this be used with non-dimmable track heads?

Yes. The connector itself supports dimming when the circuit includes a compatible dimmer, but non-dimmable track heads can still be fitted and will operate at full brightness regardless of dimmer position.

What is the IP20 rating suitable for?

IP20 indicates protection against solid objects larger than 12.5mm (fingers, tools) but no protection against moisture. This connector is suitable for dry indoor spaces only — not bathrooms, kitchens near sinks, or outdoor covered areas.
