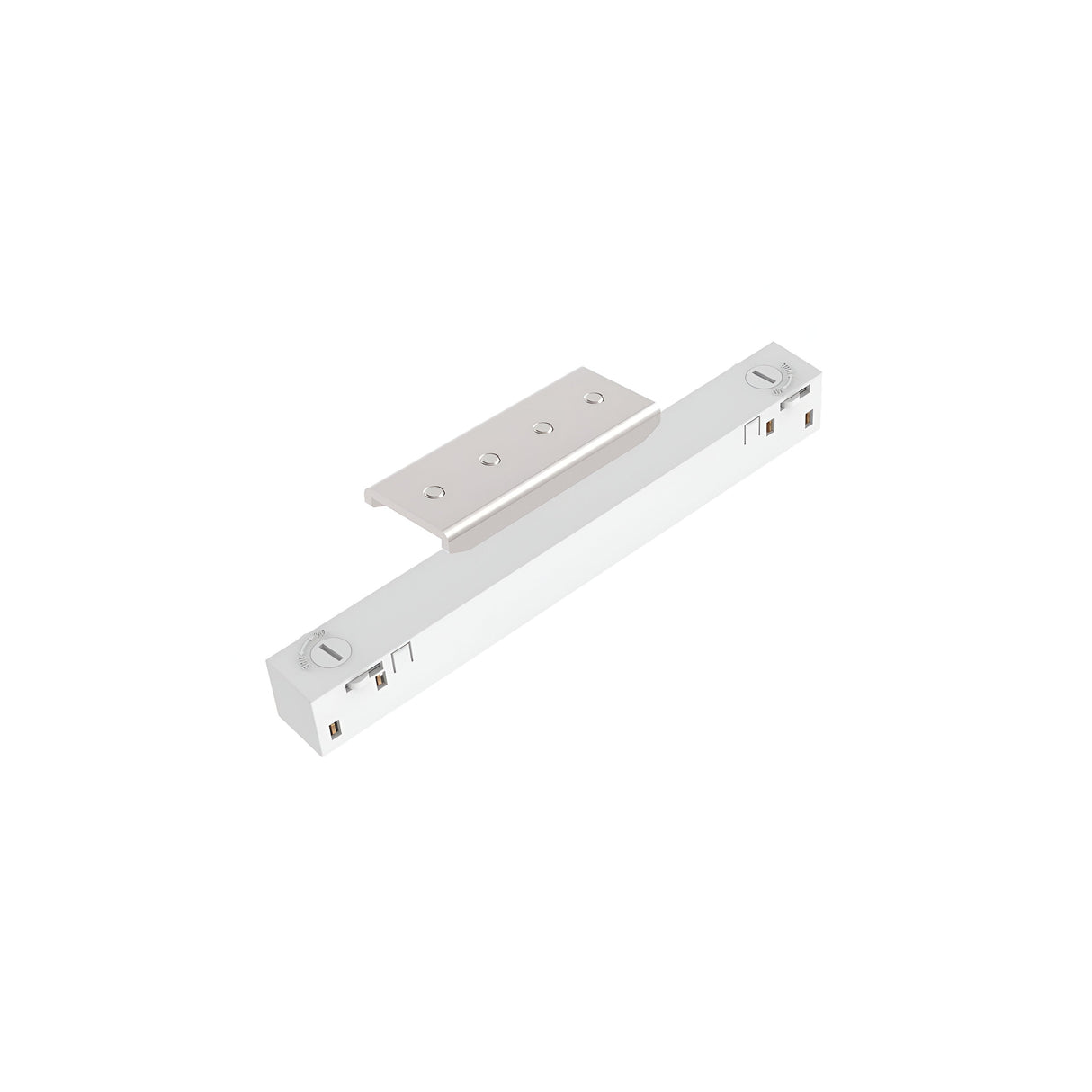

Luxeon Surface Linear Track Connector - White

The Luxeon Surface Linear Track Connector is a 225mm joining piece in white polycarbonate, designed to link sections of Ideal Lux linear track lighting into continuous runs. The connector sits 18mm proud of the mounting surface and locks track sections end-to-end through an internal clip mechanism, maintaining electrical continuity across the join.

Used in residential, office and retail track installations where lighting runs need to extend beyond a single track length or turn corners in an L or T configuration. The white finish matches Ideal Lux white track rails, creating a near-invisible seam when sections are pushed together. The connector handles the mechanical load of the track either side and maintains the power feed across the join, so track heads can be positioned anywhere along the combined run.

The polycarbonate body resists everyday knocks and temperature variation from the track power feed without discolouring or warping. The 225mm length provides enough material either side of the join for secure fixing to ceiling joists or battens, spreading mechanical stress across multiple fixing points rather than concentrating it at the seam. The IP20 rating suits dry indoor environments — living rooms, hallways, kitchens, offices and commercial interiors where track lighting provides accent or task illumination.

Is this compatible with other track brands?

The Luxeon connector is designed specifically for Ideal Lux track systems. Track profiles vary between manufacturers in their internal rail spacing and clip mechanisms, so compatibility with other brands cannot be guaranteed. Use Ideal Lux track and connectors throughout a single installation for reliable fit.

How is it fixed to the ceiling?

The connector has fixing apertures along its 225mm length that align with standard UK ceiling joist spacing. Screws pass through the connector body into joists or battens, with the track sections then clipping into the connector from either side. The track itself may also have additional fixing points along its run.

Does it carry power across the join?

Yes. The connector maintains electrical continuity between track sections, so power feeds from the transformer or mains connection point can serve track heads positioned anywhere along the combined run, including across the join.

Can it be used outdoors?

No. The IP20 rating indicates this connector is suitable for dry indoor environments only. It is not weatherproof and should not be used in damp locations, bathrooms or outdoor applications.
