Luxeon Recessed L-Connector Track Horizontal - Dimmable, Black

£10499
RRP £15000
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

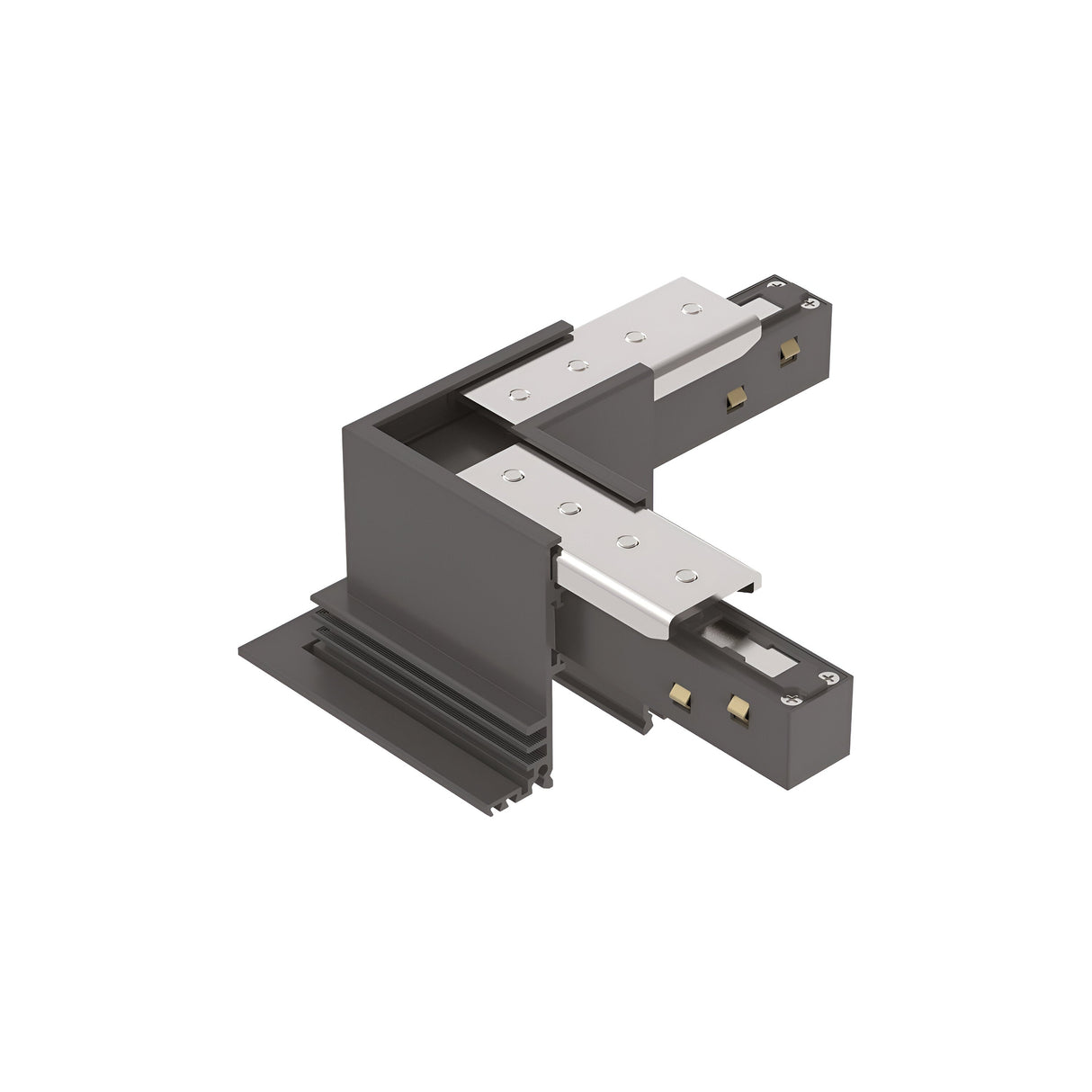

The Luxeon recessed L-connector is a 90-degree junction piece for Ideal Lux's Luxeon recessed track lighting system, formed from aluminium with a black powder-coated finish. The connector measures 100mm along each arm and sits flush with ceiling level when fitted, allowing track runs to turn corners without surface-mounted hardware or visible gaps at the join.

Designed for residential and commercial installations where track lighting needs to follow room perimeters, architectural features or L-shaped kitchen islands, the connector maintains electrical continuity across the 90-degree turn for spotlights fitted anywhere along the track run. The dimmable rating means it supports dimmer-compatible LED track spotlights on the same circuit, allowing brightness control across the entire installation. The IP20 rating restricts use to dry indoor environments only.

The aluminium body provides structural rigidity at the joint between two track sections, preventing sag or misalignment over time. Installation requires a recessed channel cut into the ceiling plasterboard, typically 100mm deep, with the connector slotting into position between two straight track sections and locked via the system's clip mechanism. The black finish matches the rest of the Luxeon recessed track range and conceals the join against dark ceilings or becomes a subtle accent line on lighter surfaces.

The connector carries Ideal Lux's 5-year warranty and is part of a modular system that includes straight tracks, I-connectors, T-connectors and end caps, all available separately. Power feed can be introduced at any point in the track run via a dedicated feed connector (sold separately), giving flexibility in circuit planning.

Specification
Length (mm) 100
Projection (mm) 100
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

Is this compatible with surface-mounted track systems?

No. The Luxeon L-connector is designed specifically for recessed track installations where the track sits flush with the ceiling. It requires a cut channel in the plasterboard and will not fit surface-mounted track profiles.

What depth of ceiling void is needed?

The connector requires a minimum 100mm recessed channel depth in the ceiling void to accommodate the track profile and allow secure fixing to the ceiling joists or support structure above.

Does the connector carry electrical current?

Yes. The connector maintains electrical continuity between two track sections, allowing power to flow through the 90-degree turn to spotlights fitted anywhere along the connected track runs.

Can it be used in bathrooms?

No. The IP20 rating restricts use to dry indoor environments only. Bathrooms require IP44 or higher rated fittings in zones near water sources.

Shipping & Returns

Free worldwide delivery

Free worldwide delivery on all orders over £99. International orders for third-party brand products may be subject to an additional courier surcharge based on volumetric weight, particularly on larger lighting fixtures — if a surcharge applies, our team will email you with the amount before dispatch and you can proceed or cancel for a full refund. See full delivery terms.

Returns

30-day returns window from delivery. As all our products are electrical or lighting goods, returned items must be inspected and recertified by a qualified electrician before resale — the cost of this inspection (25–40% of the item value) is deducted from your refund. Customers pay return shipping. Made-to-order, special-order and clearance items cannot be returned. See full returns policy.
