IP Anti-Vandal Camera Deep Base - White

£2099
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

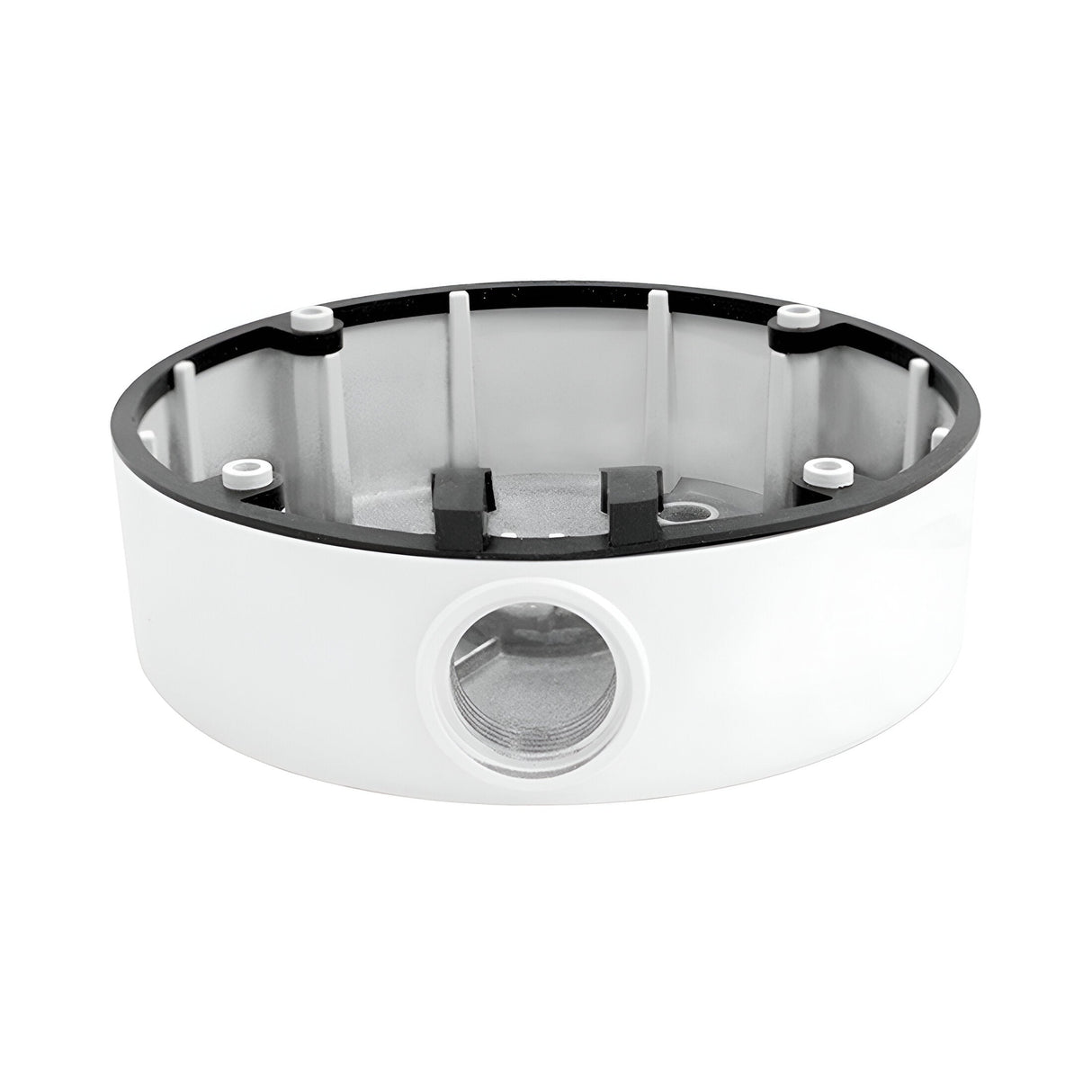

This ESP white metal deep base extends the mounting depth of IP anti-vandal dome cameras by 59mm, allowing installation over uneven surfaces, external cables or junction boxes where a flush mount is not achievable. The base is constructed from powder-coated metal with an IP66 rating, making it suitable for outdoor installation in exposed locations subject to rain and dust ingress.

Designed for use with ESP's IP range of anti-vandal dome cameras including the HDVIPC2812VFDWAV, the deep base provides a G3/4 threaded cable gland pre-fitted on the side wall, allowing cables to enter horizontally rather than through the ceiling or soffit. This is particularly useful when retrofitting cameras to masonry walls, timber fascias or pole-mounted installations where cable runs cannot be concealed within the structure. The 146mm outer diameter matches the footprint of ESP's standard dome cameras, maintaining a consistent visual profile.

The white powder-coated finish resists UV degradation and corrosion in coastal or high-humidity environments. The base fixes to the mounting surface using screws through the internal fixing points (visible in the base rim), and the camera then mounts onto the top face of the base using the standard camera fixing pattern. The 59mm additional depth provides sufficient space to house cable connectors, terminal blocks or inline power supplies inside the base cavity before sealing the camera on top.

Specification
Product Net Weight (KG) 0.4
Product Gross Weight (KG) 0.429
Outer Gross Weight (KG) 9.6
Product Length (mm) 150
Product Width (mm) 150
Product Height (mm) 85
Outer Length (mm) 150
Outer Width (mm) 315
Outer Height (mm) 315
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

Which cameras is this base compatible with?

The base is designed for ESP's IP anti-vandal dome camera range including the HDVIPC2812VFDWAV model. Check the camera's base diameter and fixing pattern against the 146mm diameter and internal fixing points before ordering.

What does IP66 rated mean?

IP66 indicates complete protection against dust ingress and protection against powerful water jets from any direction. The base can be installed outdoors in exposed locations and will withstand rain, snow and pressure washing without water penetrating the interior.

How is the cable gland used?

The G3/4 threaded cable gland is pre-fitted on the side wall of the base. Remove the compression cap, feed the cable through, then tighten the cap to seal around the cable jacket and maintain the IP66 rating. This allows cables to enter horizontally rather than from behind the mounting surface.

Can this be pole-mounted?

Yes. The base can be fixed to a pole-mounting bracket or adapter plate using the internal screw fixing points. The horizontal cable gland entry is particularly useful for pole installations where cables run up the inside of the pole.
