Deep Camera Junction Box - White IP66 Metal 112mm

£1899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

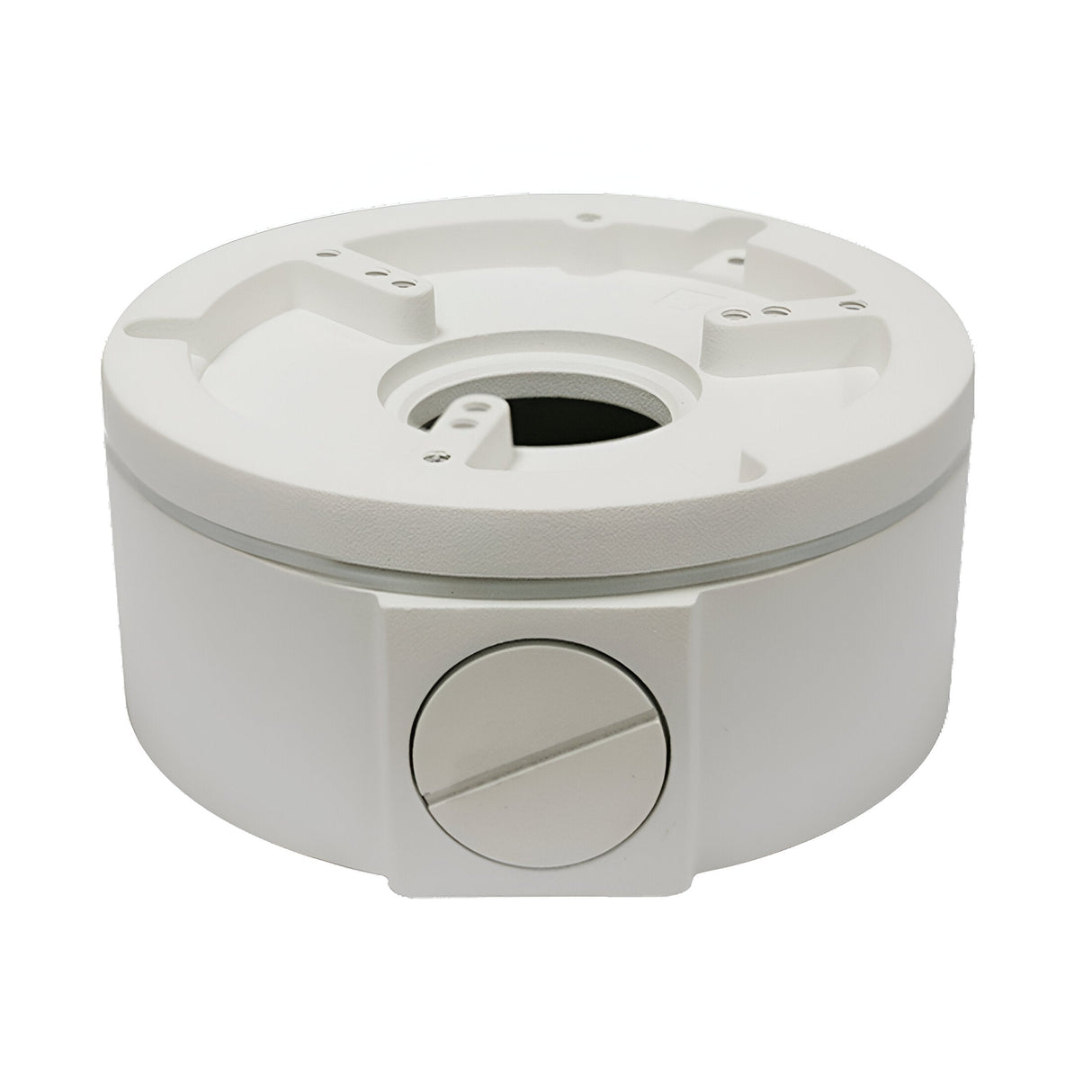

The ESP SHDVCDBW is a deep junction box designed for mounting outdoor dome and turret CCTV cameras, finished in white painted metal with an IP66 weatherproof rating. The box measures 112.5mm in diameter and 50mm in depth, providing cable management space for outdoor security camera installations where cables need to be concealed behind the camera body.

Designed for ESP HDview 4MP camera models including the SHDVC36FBW, SHDVC2812VFBW and SHDVC36FDW, the junction box mounts to the wall or soffit surface before the camera is attached to the top. The 25mm cable entry knock-out on the side of the box accepts standard 20mm conduit or glands, routing incoming power and data cables from the wall into the camera connection points without leaving exposed cable runs.

The metal construction and IP66 rating protect connections from rain ingress in outdoor installations, making the box suitable for wall-mounted cameras on building exteriors, under eaves, and in covered outdoor areas. The white finish matches ESP's white camera housings, maintaining a consistent appearance across multi-camera installations. At 380g the box adds minimal additional weight to the camera mounting point.

Specification
Product Net Weight (KG) 0.38
Product Gross Weight (KG) 0.4
Outer Gross Weight (KG) 14.44
Outer Length (mm) 530
Outer Width (mm) 390
Outer Height (mm) 250
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

Which ESP cameras is this junction box compatible with?

The SHDVCDBW is designed for ESP HDview 4MP camera models SHDVC36FBW, SHDVC2812VFBW and SHDVC36FDW. Check the camera's base diameter before ordering — most ESP dome and turret cameras with a 100-110mm base will fit.

What does the IP66 rating mean?

IP66 indicates the box is completely dust-tight and protected against powerful water jets from any direction. This makes it suitable for outdoor installation where rain and wind-driven water could otherwise reach cable connections.

How is the cable entry configured?

The box has a 25mm knock-out cable entry on the side wall, accepting standard 20mm conduit or waterproof cable glands. Cables from the wall or conduit route into the box where they connect to the camera's power and data terminals before the camera is mounted on top.

Does the junction box need to be painted?

The box is supplied pre-finished in white paint to match ESP's white camera housings. No additional painting is required unless the installation requires a different colour to match the mounting surface.
