Deep Camera Junction Box - Grey IP66 Metal

£1899
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

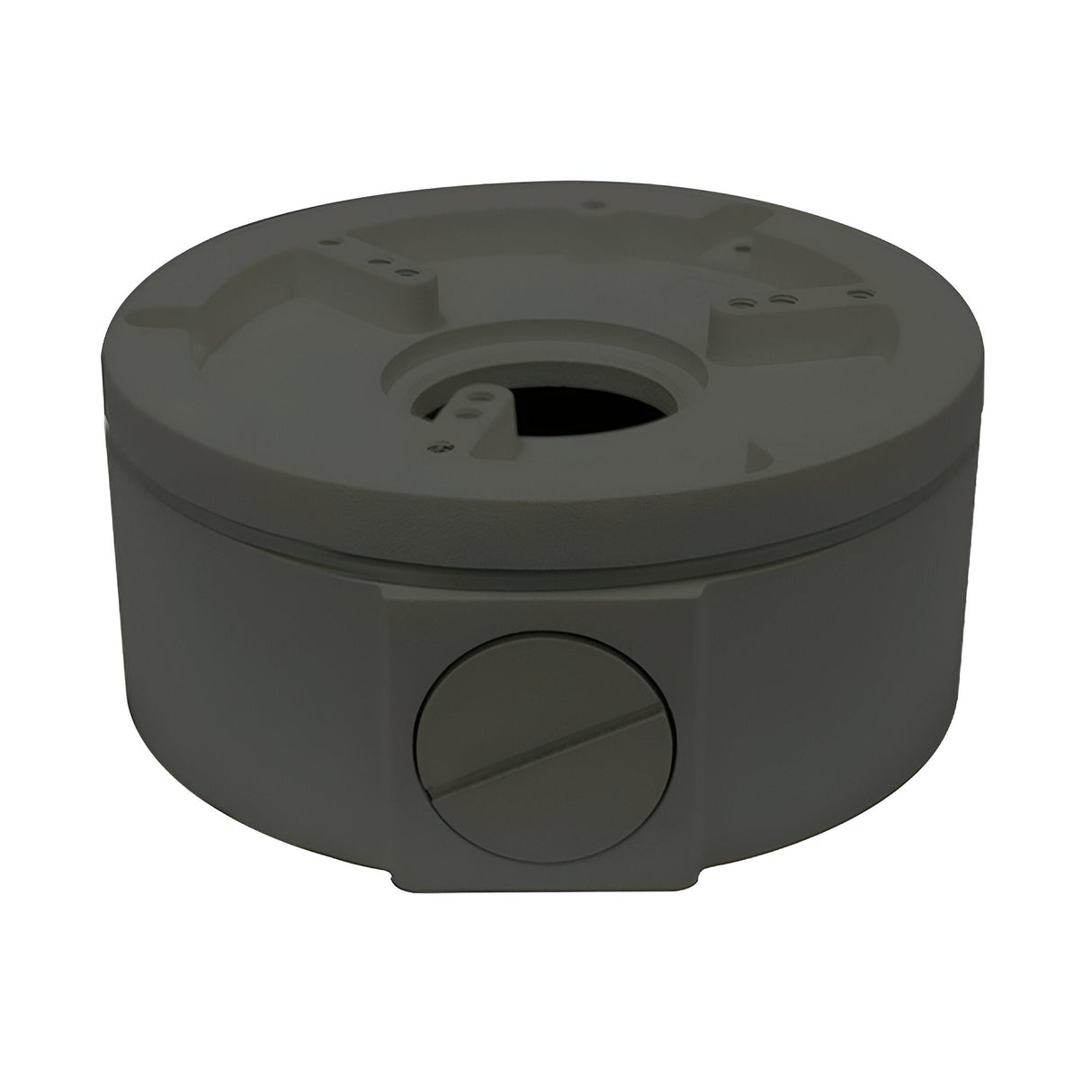

This ESP deep camera junction box is a grey metal mounting base designed for ESP HDview 4-megapixel CCTV cameras, measuring 112.5mm diameter by 50mm depth. The box carries an IP66 weatherproof rating, allowing installation on external walls, soffits and posts where the camera cable needs to be concealed and protected from rain ingress.

The junction box fits beneath the camera housing to hide cable connections and provide a secure fixing point for surface-mounted installations. The 25mm cable entry accepts standard CCTV camera cable glands or conduit, routing the power and data cables into the box where they connect to the camera's pigtail before the camera is fixed on top. The grey powder-coated metal finish matches ESP's grey camera housings and weathers without rusting when installed outdoors.

Compatible ESP camera models include the SHDVC36FBG (3.6mm fixed lens), SHDVC2812VFBG (2.8-12mm varifocal lens) and SHDVC36FDG (3.6mm fixed dome). The 50mm depth provides clearance for cable connections and allows some slack cable to be stored inside the box, reducing strain on the connectors. The box fixes to the mounting surface via screw holes on the base, with the camera then mounted to the top of the box using the camera's existing fixing points.

Specification
Product Net Weight (KG) 0.38
Product Gross Weight (KG) 0.4
Outer Gross Weight (KG) 14.44
Outer Length (mm) 530
Outer Width (mm) 390
Outer Height (mm) 250
Downloads

Product Specification Sheet

Product Manual

Frequently Asked

Which ESP cameras does this junction box fit?

The box is compatible with ESP HDview 4-megapixel cameras including the SHDVC36FBG (3.6mm fixed lens), SHDVC2812VFBG (2.8-12mm varifocal lens) and SHDVC36FDG (3.6mm fixed dome). Check the camera datasheet to confirm compatibility before ordering.

What does the IP66 rating mean?

IP66 means the junction box is protected against powerful water jets from any direction and is dust-tight. This makes it suitable for outdoor installation on exposed walls, soffits and posts where rain and wind-driven moisture are present.

Can the cable entry accept conduit?

Yes. The 25mm cable entry accepts standard 20mm or 25mm conduit fittings, as well as cable glands. This allows the CCTV cable run to be fully protected from the camera back to the recorder or power supply.

How is the box mounted?

The base of the junction box has pre-drilled screw holes for fixing to brick, block, timber or metal surfaces. The camera then mounts to the top of the box using the camera's existing fixing points, with the cable connections concealed inside.
