Brillia 3-Phase Trimless Track End Right Power Input - White

£1399
RRP £1920
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

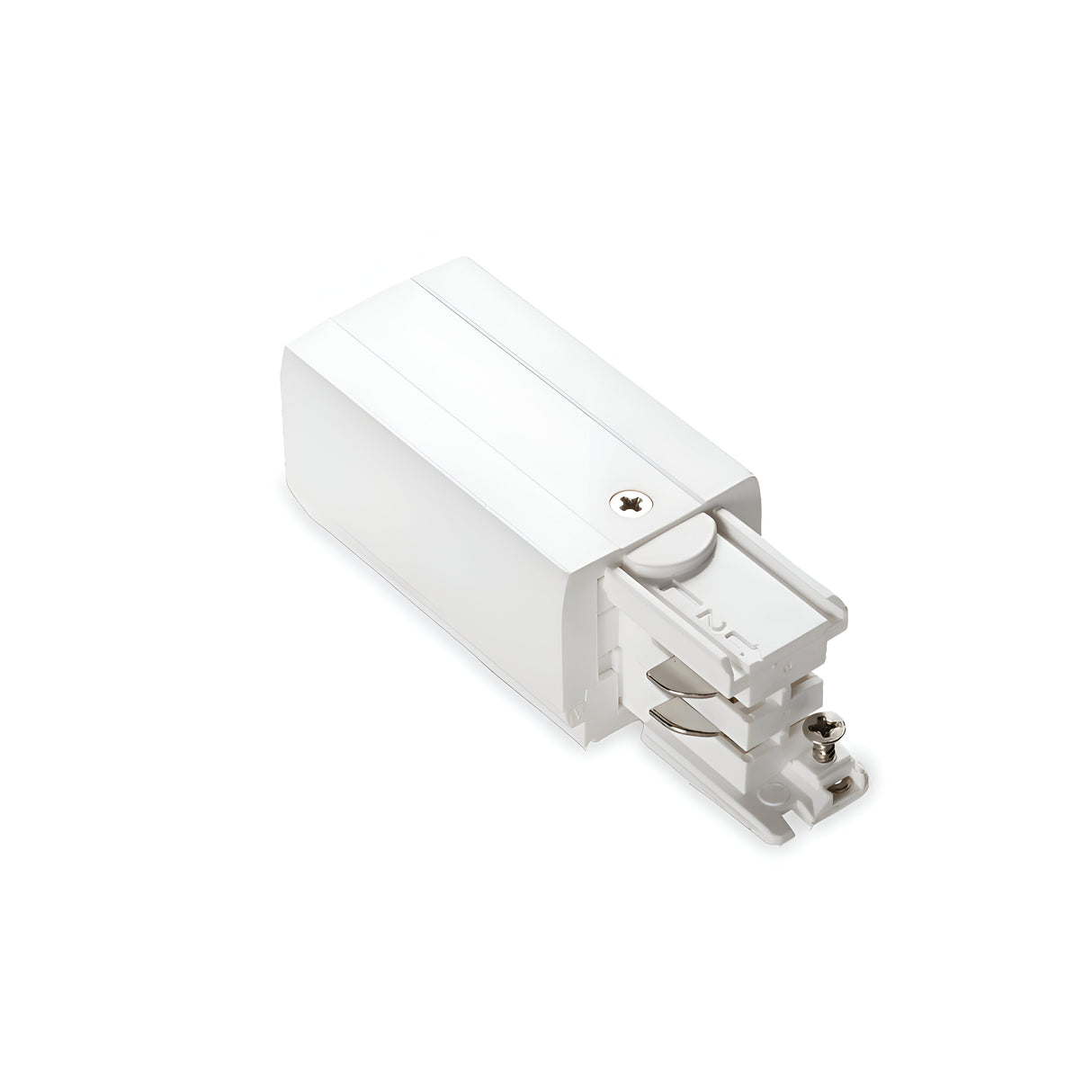

The Brillia 3-phase trimless track end is a right-side power input termination piece with an integrated on-off switch, finished in white plastic. Measuring 99mm long by 32mm high with a 35mm projection, it connects the mains supply to a 3-phase recessed track system and provides manual switching control for the entire run.

Designed for recessed track installations in retail spaces, galleries, hospitality interiors and residential open-plan living areas, this end piece fits Ideal Lux's Brillia trimless track system where the track profile sits flush with the ceiling plane. The right-side configuration means the power cable enters from the right when facing the track, allowing the mains entry point to be positioned according to ceiling cavity routing rather than forcing a symmetrical centre feed.

The white plastic housing matches the Brillia track body and sits flush with the ceiling surface once installed, maintaining the clean uninterrupted line that defines trimless systems. The on-off rocker switch on the face of the end cap controls all three phases simultaneously, allowing the entire track run to be isolated without needing to switch individual spotlight heads. The IP20 rating restricts use to dry indoor environments — living rooms, bedrooms, kitchens, offices and retail interiors where moisture is not present.

Specification
Length (mm) 99
Projection (mm) 35
Height (mm) 32
Dimmable No
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does 'right-side power input' mean?

The power cable enters from the right when you're facing the track. This allows the mains supply to be routed from the right side of the track run rather than forcing a centre or left-side entry, giving more flexibility to match ceiling cavity wiring routes.

Is this compatible with other track brands?

No. This end piece is designed specifically for Ideal Lux Brillia 3-phase trimless track systems. It will not fit tracks from other manufacturers or even other Ideal Lux track ranges due to differences in profile dimensions and contact configuration.

Does the on-off switch control all three phases?

Yes. The rocker switch on the face of the end cap isolates all three phases simultaneously, switching off the entire track run rather than individual circuits. This provides manual override control for the whole lighting system.

Can this be used outdoors?

No. The IP20 rating means the end cap offers no protection against moisture or dust ingress. It is suitable only for dry indoor environments such as living rooms, offices, retail spaces and galleries.

Shipping & Returns

Free worldwide delivery

Free worldwide delivery on all orders over £99. International orders for third-party brand products may be subject to an additional courier surcharge based on volumetric weight, particularly on larger lighting fixtures — if a surcharge applies, our team will email you with the amount before dispatch and you can proceed or cancel for a full refund. See full delivery terms.

Returns

30-day returns window from delivery. As all our products are electrical or lighting goods, returned items must be inspected and recertified by a qualified electrician before resale — the cost of this inspection (25–40% of the item value) is deducted from your refund. Customers pay return shipping. Made-to-order, special-order and clearance items cannot be returned. See full returns policy.
