Brillia 3-Phase Trim Track End Power Input Right - 1-10V Dimmable Black

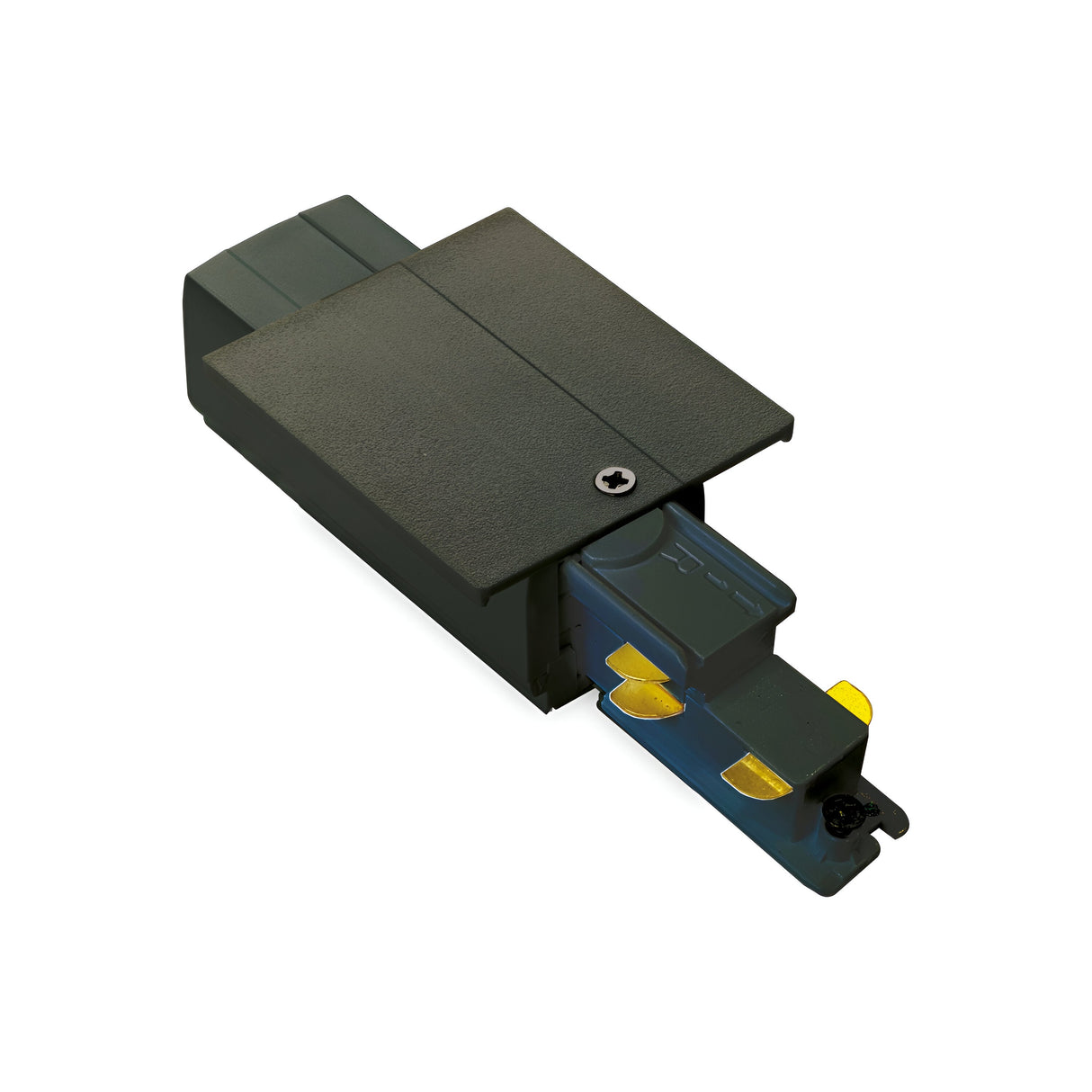

The Brillia 3-phase trim track end power input is a right-hand feed connector that brings mains power into an Ideal Lux Brillia track lighting system. The unit supplies all three phases of a track run, with integrated 1-10V dimmable control allowing the connected track fittings to be dimmed together from a separate 1-10V controller. The black plastic housing measures 140mm x 58mm x 37mm and fits flush with the track profile.

Designed for commercial and residential track installations where the power feed needs to enter at the end of a track run rather than mid-span, this end connector provides a cleaner finish than inline power feeds. The right-hand configuration means the mains cable enters from the right when looking at the connector from the front. Track lighting systems using this connector are typically found in retail displays, galleries, hospitality spaces and contemporary domestic kitchens where adjustable accent lighting is needed along a ceiling or wall-mounted track.

The 1-10V dimmable protocol requires a separate 1-10V controller (sold separately) and compatible 1-10V track fittings. When paired with 1-10V-compatible spotlights or pendant adapters on the same track run, the system allows smooth dimming from 10% to 100% output. The IP20 rating limits the connector to dry indoor locations away from direct moisture exposure. The black finish integrates with black or anthracite track profiles and recedes visually against dark ceilings.

What is 1-10V dimming and what do I need to use it?

1-10V is a low-voltage dimming protocol that requires a separate 1-10V controller (wall-mounted or wireless) to send a control signal to the track system. The controller connects to the power input via dedicated low-voltage wiring, and all track fittings on the same circuit must also support 1-10V dimming. Standard phase-cut dimmers will not work with 1-10V systems.

What does 'right-hand feed' mean?

Right-hand feed means the mains cable enters the connector from the right side when you are looking at the front face of the unit. This determines which end of a track run the connector sits on and how the cable is routed back to the ceiling void or wall.

Is this compatible with other track systems?

No. This power input is designed specifically for Ideal Lux Brillia 3-phase track. Track lighting systems use proprietary connector profiles, so mixing brands or ranges typically results in poor contact or mechanical incompatibility.

Can it be used outdoors or in bathrooms?

No. The IP20 rating provides basic protection against dust and solid objects but no protection against moisture. The connector must be installed in dry indoor locations away from splashes, steam and condensation.
