Brillia 3-Phase Track Middle Power Input - 1-10V Dimmable, Black

£2899
RRP £4080
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

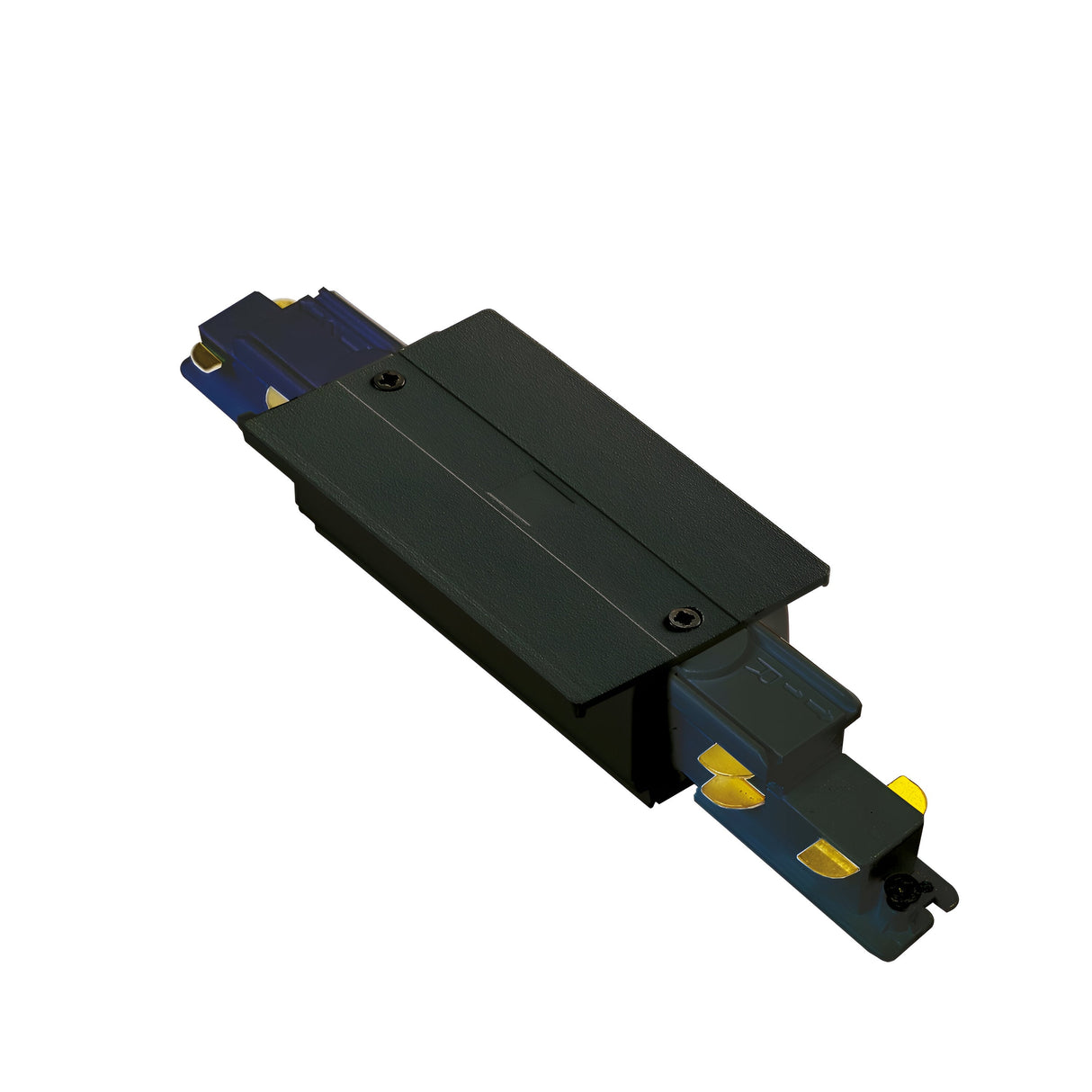

The Brillia 3-phase track middle power input is a 205mm black plastic connector that feeds mains power into the centre of a 3-phase track lighting run, allowing longer track installations without voltage drop. It includes integrated 1-10V dimming control, so the entire track circuit can be dimmed from a compatible wall controller or building management system.

Designed for retail, gallery, hospitality and office track lighting installations where dimming control is required across multiple spotlights on the same circuit. The middle feed configuration suits runs longer than 3m where a single end feed would cause voltage drop at the far end of the track. The unit clips directly onto Ideal Lux Brillia 3-phase track and connects to mains via a cable entry at the rear of the housing.

The black plastic housing measures 205mm long by 58mm projection by 37mm height, sitting flush with the underside of the track rail. The IP20 rating suits dry indoor environments — showrooms, offices, living rooms, commercial interiors — where the fitting is protected from moisture. The 1-10V dimming protocol is compatible with most commercial lighting control systems and requires a separate 1-10V dimmer unit (not included) wired to the control terminals inside the housing.

Specification
Length (mm) 205
Projection (mm) 58
Height (mm) 37
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

What is a middle power input used for?

A middle power input feeds mains into the centre of a track run rather than at one end. This prevents voltage drop on longer installations (typically over 3m) and allows power to be distributed more evenly across the circuit when multiple spotlights are fitted.

What is 1-10V dimming?

1-10V is a commercial dimming protocol where a low-voltage control signal (1-10 volts DC) adjusts the light output. It requires a separate 1-10V dimmer unit wired to the control terminals inside the power input housing. The protocol is widely used in commercial lighting control systems.

Is this compatible with all 3-phase track?

No. This middle power input is designed specifically for Ideal Lux Brillia 3-phase track. It will not fit other manufacturers' track systems due to differences in profile dimensions and contact configuration.

Can it be installed in bathrooms or kitchens?

The IP20 rating suits dry indoor environments only. It is not protected against moisture ingress, so it should not be installed in bathrooms, wet rooms, or areas subject to condensation or splashing.
