Brillia 3-Phase L-Connector Track Right - White, Dimmable 1-10V

£3099
RRP £4320
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

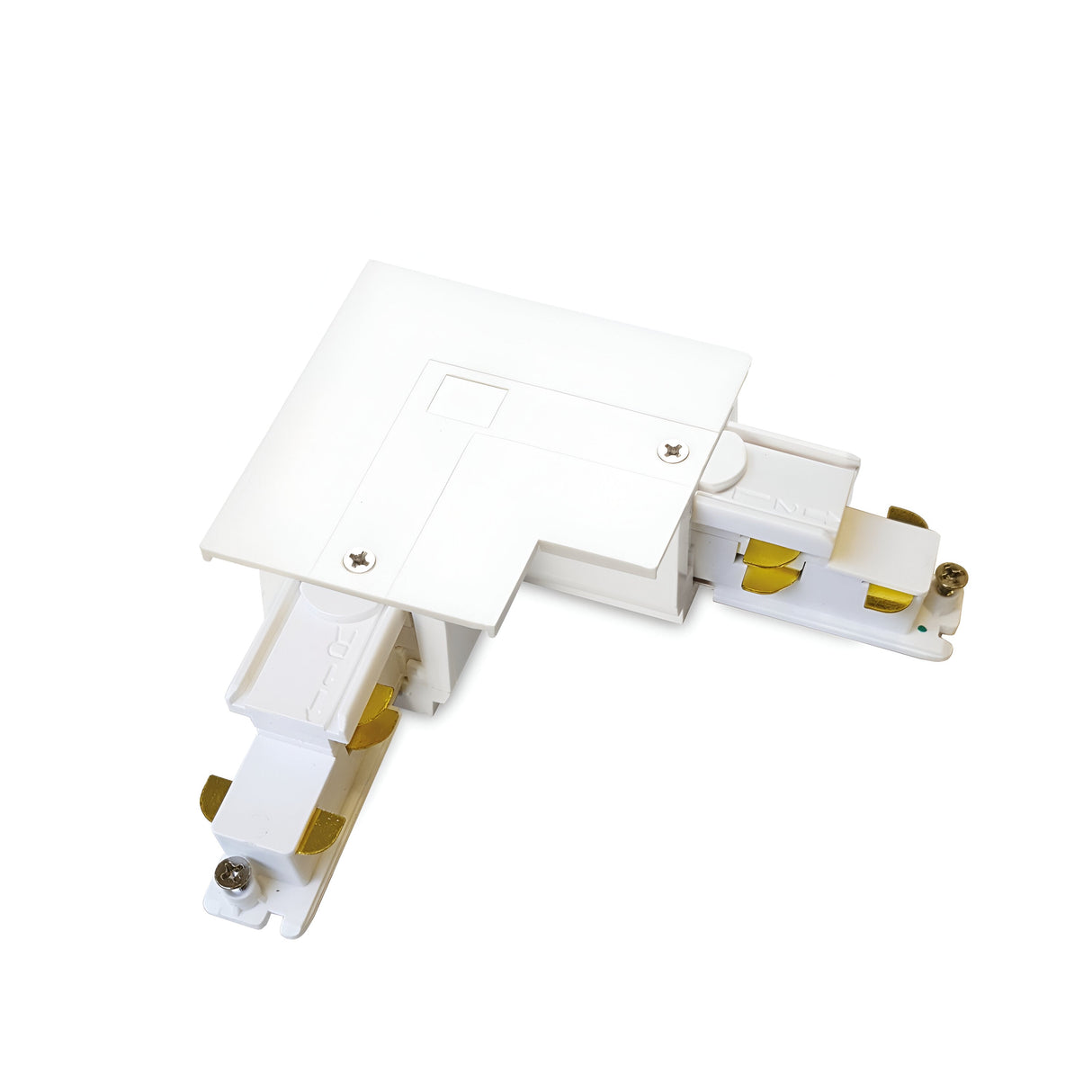

The Brillia L-connector is a right-hand corner piece for 3-phase track lighting systems, forming a 90-degree turn in the track run. Moulded from white plastic with internal brass contacts, the connector joins two track sections at a corner while maintaining continuous power across all three phases. The connector supports 1-10V dimming protocol when paired with compatible track lights and a 1-10V dimmer control.

Designed for surface-mounted track installations in retail, gallery, office and residential applications where track runs need to turn corners or follow room perimeters. The 120mm x 120mm footprint fits standard 3-phase track profiles and the 35mm height matches typical track depth, creating a flush corner join. The right-hand designation means the connector turns the track 90 degrees to the right when viewed from the power feed direction.

The white plastic housing provides electrical insulation while keeping visual weight minimal on white or light-coloured ceilings. Brass contacts inside the connector body ensure reliable phase continuity across the corner join, preventing voltage drop or phase imbalance in longer track runs. The IP20 rating suits dry indoor environments but not damp or outdoor locations.

Specification
Length (mm) 120
Projection (mm) 120
Height (mm) 35
Dimmable Yes
IP Rating IP20
Warranty 5 Years
Frequently Asked

What does 'right-hand' mean for this connector?

The connector turns the track 90 degrees to the right when viewed from the power feed direction. If you need the track to turn left, you need the left-hand version of this connector.

Is this compatible with all 3-phase track systems?

The Brillia connector fits standard 3-phase track profiles. Most manufacturers use compatible dimensions, but verify your existing track profile matches the 35mm height and accepts 120mm corner connectors before ordering.

Does the 1-10V dimming work automatically?

No. 1-10V dimming requires a separate 1-10V dimmer control unit wired into the track power supply, plus track lights that support 1-10V protocol. The connector itself only passes the dimming signal through — it does not create it.

Can this be used outdoors?

No. The IP20 rating means the connector is suitable for dry indoor environments only. It is not protected against moisture or dust ingress and should not be used in bathrooms, outdoor canopies or damp locations.

Shipping & Returns

Free worldwide delivery

Free worldwide delivery on all orders over £99. International orders for third-party brand products may be subject to an additional courier surcharge based on volumetric weight, particularly on larger lighting fixtures — if a surcharge applies, our team will email you with the amount before dispatch and you can proceed or cancel for a full refund. See full delivery terms.

Returns

30-day returns window from delivery. As all our products are electrical or lighting goods, returned items must be inspected and recertified by a qualified electrician before resale — the cost of this inspection (25–40% of the item value) is deducted from your refund. Customers pay return shipping. Made-to-order, special-order and clearance items cannot be returned. See full returns policy.
