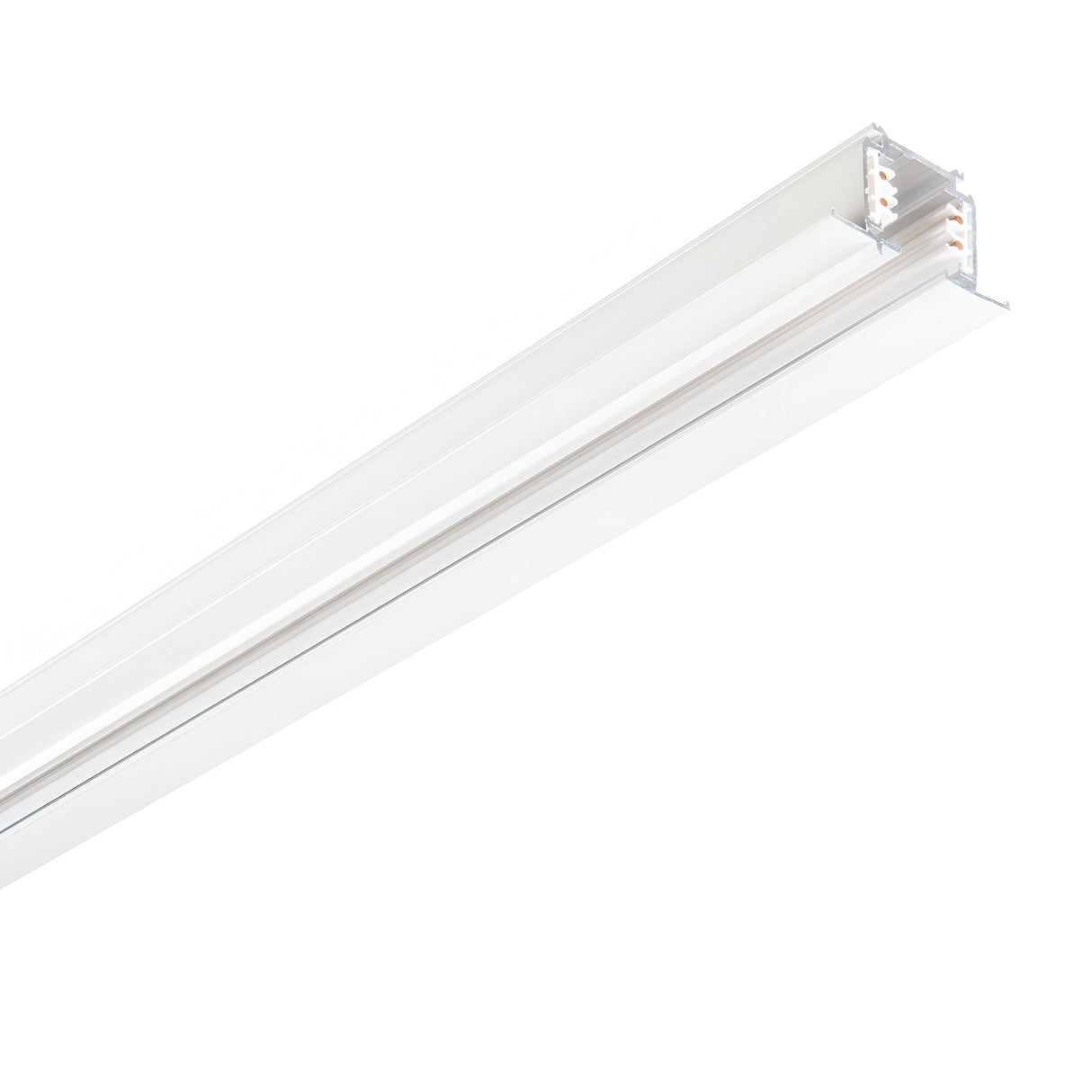

Brillia 2m Recessed 3-Phase Dimmable Track - White Trim Profile

The Brillia is a 2-metre recessed 3-phase track system with a white trim profile and a 56mm ceiling projection. The track accepts standard 3-phase track heads and spotlights (sold separately), which clip into any position along the 2-metre run and can be repositioned without tools. The dimmable design works with compatible LED track heads and a mains dimmer, allowing light levels to be adjusted from full brightness down to low ambient.

Designed for ceiling-flush installation in retail, gallery, showroom, office and residential settings, the recessed profile creates a clean line across the ceiling with no housing visible below the plaster line. The 2000mm length suits lighting runs above kitchen islands, worktops, retail display walls, and corridors where multiple spotlights need to be positioned along a single line. The white trim finish integrates with white ceilings and can be overpainted if needed to match off-white or coloured ceiling tones.

The 3-phase circuit splits the track into three independently controlled circuits, allowing different zones of track heads to be switched or dimmed separately. This is useful in retail where different product displays need different light levels, or in domestic kitchens where task lighting over a worktop can be brighter than ambient lighting over a dining end. The IP20 rating suits dry indoor locations only. The track accepts any Ideal Lux 3-phase track head or compatible third-party 3-phase spotlight.

What track heads does it accept?

The Brillia accepts any 3-phase track head or spotlight. Ideal Lux produces a range of compatible track heads, and most third-party 3-phase track systems use the same mounting standard. Track heads are sold separately and clip into the track at any position along the 2-metre run.

What does 3-phase mean?

The track contains three separate circuits running the full 2-metre length. Track heads clip onto one of the three circuits, allowing different zones of lights to be controlled independently. This is useful where different areas need different light levels or switching — for example, brighter task lighting at one end and softer ambient at the other.

Is it dimmable?

Yes, when paired with dimmable LED track heads and a compatible mains dimmer. The track itself is dimmable-ready, but dimming performance depends on the specific track heads and dimmer model used.

What ceiling void depth is needed?

The 56mm projection requires a ceiling void of at least 60-70mm to accommodate the track housing and wiring. The white trim profile sits flush with the plaster line once installed, leaving no visible housing below the ceiling.
