Description

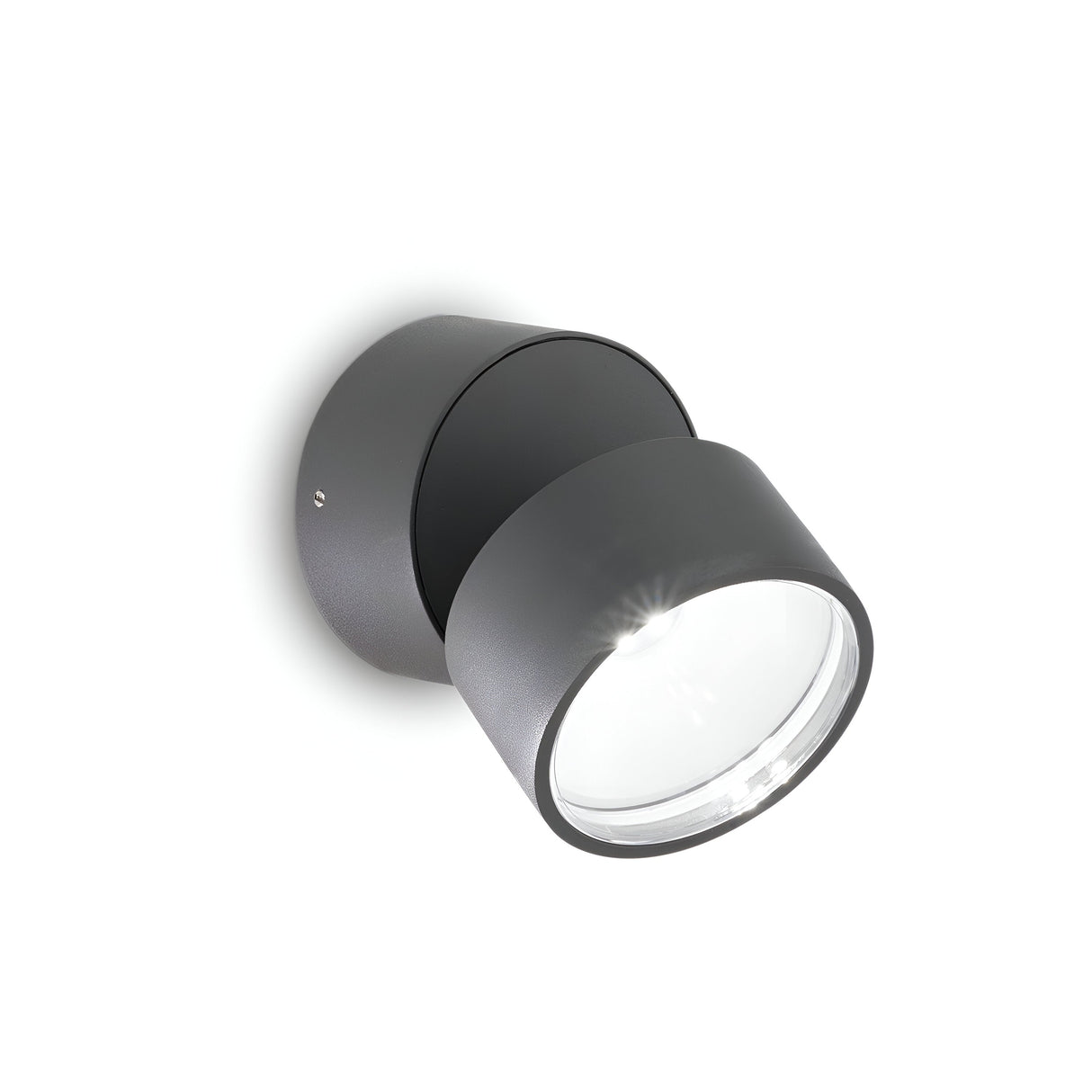

The Arcane is a 90mm diameter round outdoor spotlight with an integrated 7W LED running at 3000K warm white, housed in a grey powder-coated aluminium body rated IP54 against dust and water ingress. The cylindrical head tilts on a pivot joint fixed to a circular wall plate, allowing the beam to be angled towards pathways, planting, architectural features or building facades.
Designed for residential and commercial exterior lighting, the Arcane mounts to exterior walls, soffits, pergolas and garage entrances where directional accent or task lighting is needed. The 90mm diameter and 32mm projection keep the fitting compact enough for narrow soffits and doorways without the spotlight head protruding too far into circulation space. The IP54 rating protects against rain, coastal moisture and dust but does not permit submersion or high-pressure hosing.
The grey powder-coated finish provides a neutral tone that recedes visually against masonry, render, timber cladding and UPVC without the reflective glare of polished metal finishes. The 7W integrated LED delivers directional light output sufficient to highlight a 2-3m section of wall, a doorway or a short path run without the broader flood coverage of higher-wattage spotlights. The LED is non-dimmable and non-replaceable — the entire unit is replaced at end of life, typically after 25,000-30,000 hours depending on usage.
Specification
| Diameter (mm) |
90 |
| Height (mm) |
32 |
| Cable Length (mm) |
1125 |
| Dimmable |
No |
| Number Of Bulbs |
1 |
| Bulb Type |
LED |
| Colour Temperature |
3000K |
| IP Rating |
IP54 |
| Warranty |
5 Years |
Frequently Asked
What does the IP54 rating mean for outdoor use?
IP54 confirms the Arcane is protected against dust ingress and water splashing from any direction, making it suitable for sheltered and exposed outdoor positions including walls, soffits and pergolas. It is not submersible and should not be installed where it will be subjected to high-pressure hosing or direct heavy rainfall for extended periods without some overhead protection.
Can the spotlight head be angled after installation?
Yes. The cylindrical head tilts on a pivot joint attached to the circular wall plate, allowing the beam to be directed up, down or at an angle to illuminate specific features, pathways or building facades. The joint holds position once set but can be re-adjusted by hand.
Is the LED replaceable?
No. The 7W LED is integrated into the spotlight housing and cannot be replaced. When the LED reaches end of life (typically 25,000-30,000 hours), the entire unit is replaced. This is standard for compact integrated LED outdoor fittings.
What mounting surface is required?
The Arcane fixes to any solid vertical or horizontal surface capable of taking fixings — masonry, render, timber cladding, UPVC soffit or metal panel. The circular wall plate has fixing holes for standard screws and wall plugs. The 1125mm cable run allows for routing back to a junction box or switched fused spur.
