28W HF Square Emergency Bulkhead - White

£4599
The RRP is the manufacturer's recommended retail price of the item.
Limited Stock
We are an Independent UK Company
Price match. Found it cheaper? Contact us
Trade Discount Available
Description

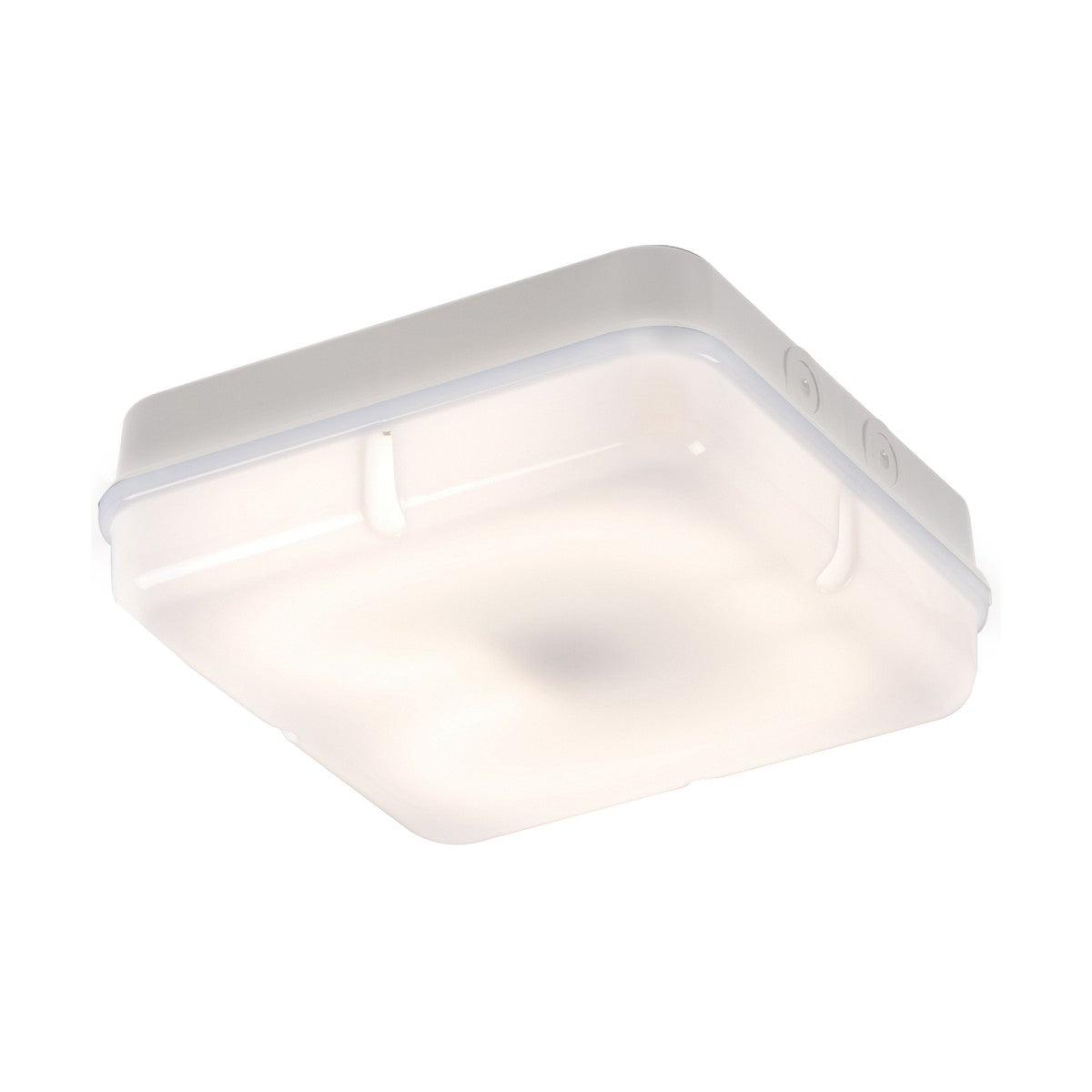

The Knightsbridge TPS28WOEMHF is a 285mm square emergency bulkhead with a white polycarbonate base, opal diffuser and an integrated high-frequency electronic ballast. Supplied complete with a 2D 28W 4-pin fluorescent lamp at 3500K, the fitting provides maintained or non-maintained emergency operation with a 3-hour battery backup, switching to emergency power automatically when mains supply is interrupted.

Designed for commercial corridors, stairwells, communal areas and fire escape routes, the bulkhead carries IP65 ingress protection, making it suitable for damp indoor environments including plant rooms, loading bays and covered external walkways. The opal diffuser spreads light evenly across the fitting footprint without harsh glare spots, while the high-frequency ballast eliminates visible flicker during normal operation.

The 285mm square footprint and 80mm projection fit standard ceiling spacing for commercial emergency lighting, and the Class I construction requires earthed installation to a suitable mounting surface. The emergency function can be configured as maintained (lamp on during normal operation and emergency), non-maintained (lamp on only during emergency), or switched (lamp controlled by wall switch during normal operation, forced on during emergency), giving flexibility depending on the application and building regulations.

The white polycarbonate base resists impact and UV degradation better than ABS alternatives, and the IP65 seal between base and diffuser prevents dust and moisture ingress without requiring additional gaskets. Replacement lamps are available separately under product code 2D28W4P when the original lamp reaches end of life, typically after 8,000-10,000 hours of use.

Specification
Length 285mm
Width 285mm
Projection 80mm
Construction Polycarbonate
Finish White
IP Rating IP65
Class I
Primary Voltage 230V 50Hz
Diffuser Opal
Emergency Maintained / Non-maintained / Switched
Lamp Technology Fluorescent
Lamp Base 2D 28W 4P
Lamp Included Yes
Dimmable No
Max. Wattage 28W
CCT 3500K
Light Colour White
Warranty 1 Year Guarantee
Warranty Information (excluding battery)
Downloads

Product Specification Sheet

Frequently Asked

What is the difference between maintained and non-maintained emergency operation?

Maintained mode keeps the lamp on during normal mains operation and switches to battery backup during power failure. Non-maintained mode keeps the lamp off during normal operation and only illuminates on battery when mains power is lost. Switched mode allows wall-switch control during normal operation but forces the lamp on during power failure. The mode is configured during installation.

How long does the emergency battery last?

The integrated battery pack provides 3 hours of emergency illumination when fully charged. The battery charges automatically during normal mains operation. Battery lifespan is typically 3-4 years depending on temperature and discharge cycles, after which it should be replaced to maintain the 3-hour emergency duration.

Can this be installed outdoors?

The IP65 rating protects against dust and water jets, making the bulkhead suitable for covered external walkways, loading bays and canopies where it is sheltered from direct rainfall. It is not rated for fully exposed outdoor installation subject to driving rain or prolonged water immersion.

What is the expected lamp life?

The supplied 2D 28W 4-pin fluorescent lamp typically lasts 8,000-10,000 hours under normal use. Replacement lamps are available separately under product code 2D28W4P. High-frequency operation reduces lamp wear compared to older magnetic ballast fittings.
